Checking Hole Wear in Surface Wrap Side Panel

Hole wear in surface wrap side panel causes a reduction in brake torque.

1. Open net wrap cover.

PP98408,0000251 -19-14OCT09-1/2

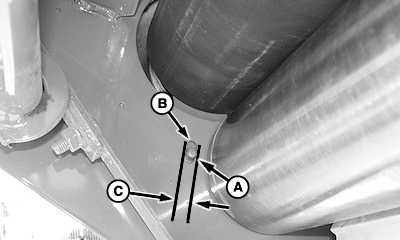

2. Perform visual check of rubber feed roll bearing support pin (A) wear in slotted hole (B) on left- and right-hand side panels.

3. If slotted hole width (C) is over 8 mm (0.32 in.), weld key stock to side panels. (See your John Deere dealer.)


A-Pin
B-Slotted Hole
C-Slotted Hole Width

E56760
