Checking For Looped Net Material

Net material looped above counterknife angle after cut off may get pinched between front sheet and rubber roll when counterknife angle is raised.

Looping net material is caused from brake not quickly stopping roll of net material.

PP98408,0000268 -19-09OCT09-1/2

1. Make a bale and wrap.

2. Shut off tractor engine and remove key.

3. Open net wrap cover.

4. Perform visual check from right-hand side of baler.

  • If net material is against steel roll as shown, surface wrap should be performing acceptably.
  • If net material (A) is looped over counterknife angle (B), brake torque may be too low. (See CHECKING AND ADJUSTING NET WRAP FEED ROLL BRAKE in this section.


A-Net Material
B-Counterknife Angle

E58032

Net Material Against Steel Roll

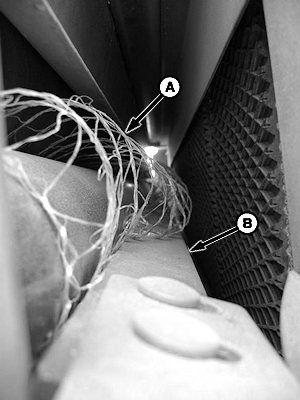

E58031

Looped Net Material Above Counterknife Angle

PP98408,0000268 -19-09OCT09-2/2
