Checking and Straightening Net Pan Angle

2. Remove leaf spring by removing two cotter pins (one on each end of leaf spring).

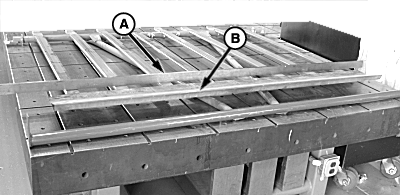

3. Place a straight edge (A) on net pan angle (B) top (shown) or channel beneath net pan angle.

4. Net pan angle may be bowed up to 2.5 mm (0.10 in.).

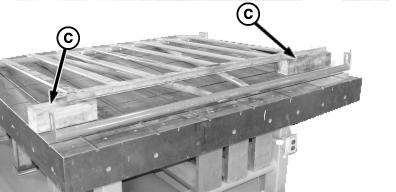

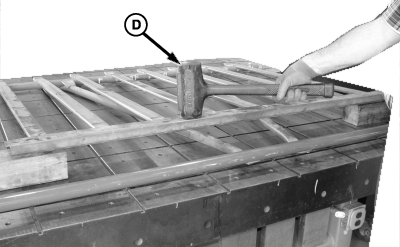

5. If bow is high in the middle, place blocks (C) under each end and push down, or use a dead blow hammer (D) in middle of net pan angle to straighten.

6. Adjust net pan pressure. (See CHECKING and ADJUSTING NET PAN PRESSURE WITHOUT LEAF SPRING in this section.)

A-Straight Edge
B-Net Pan Angle
C-Blocks
D-Dead Blow Hammer

PP98408,000026F -19-29SEP09-1/1
