Every 30 Hours

Bale Shape Sender Arms

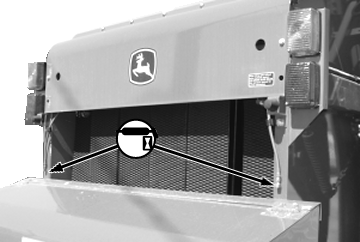

E54532

With Net Wrap

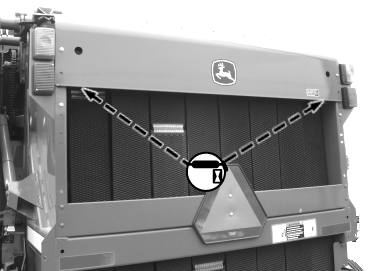

E54548

Without Net Wrap

AG,OUMX005,1335 -19-20APR09-1/7

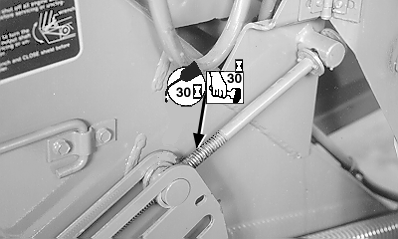

Pickup Lift Crank

Lubricate crank threads with SAE 30 or heavier oil, or with John Deere EP Moly or an equivalent SAE multipurpose grease.

E47610

AG,OUMX005,1335 -19-20APR09-2/7

Twine Arm Hub, Hydraulic Cylinder Pivot and Twine Wrap Actuator Rod

causym CAUTION: Twine arms can move unexpectedly. Keep hands out of twine arm path to avoid crushing. Turn off power BEFORE servicing or adjusting twine arms or twine cutter mechanism.

Stay out of the path of twine arms at all times when power to twine arm is ON.

NOTE: Hydraulic cylinder pivot lubrication fitting is on machines equipped with hydraulic actuated twine wrap only.

Clean off material/crop buildup from actuator rod.

E47598

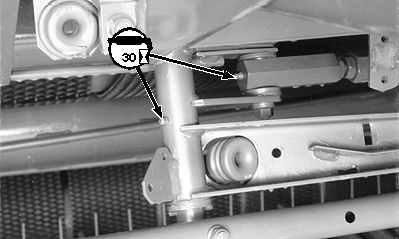

E39204

458 and 458S Baler

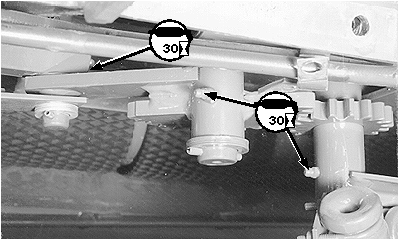

E39264

558 Baler

AG,OUMX005,1335 -19-20APR09-3/7

Pickup Drive Idler Pivot

NOTE: Shield removed for photographic purpose.

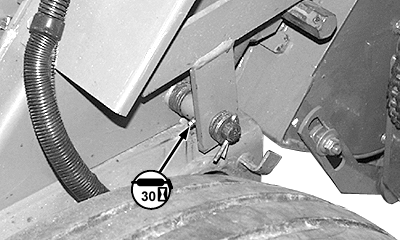

E48763

Right-Hand Side

AG,OUMX005,1335 -19-20APR09-4/7

COVER-EDGE Net Wrap Angle Arm Pivot (If Equipped)

IMPORTANT: Do not over lubricate angle arm pivot lubrication fittings. This will result in grease getting onto the rubber roll, causing wrappage.

Lubrication fittings are located on both left and right-hand sides.

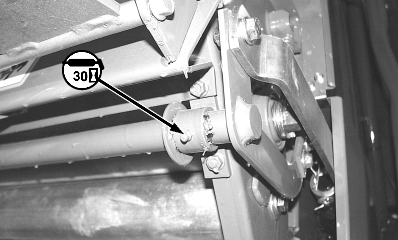

E48340

Right-Hand Side Shown

AG,OUMX005,1335 -19-20APR09-5/7

Pickup Idler Arm
E49003

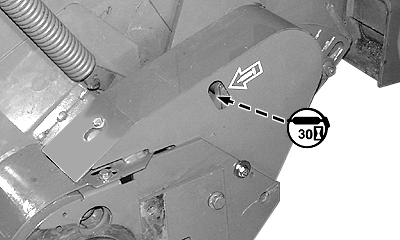

MegaWide Plus (Left-Hand Side)

AG,OUMX005,1335 -19-20APR09-6/7

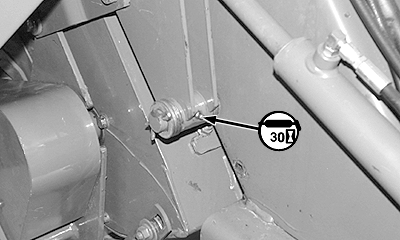

Pickup Lift Bellcrank Pivot
E49004

MegaWide Plus Shown

AG,OUMX005,1335 -19-20APR09-7/7
