Every 10 Hours

Chains

causym CAUTION: To help prevent injury, do not lubricate chains with machine running.

Liberally apply SAE 30 or heavier oil to chains every 10 hours of operation.

Lubricate chains immediately after operation when chains are still warm. Let the machine stand idle for a short period to ensure effective oil penetration.

TS284

OUO6085,000057E -19-24APR09-1/4

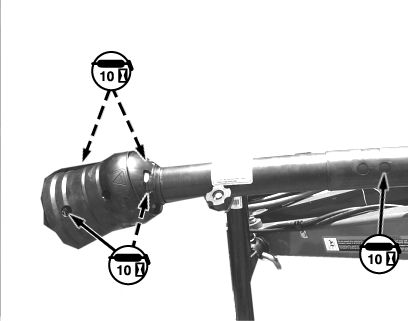

PTO Driveline
E54341
E39734

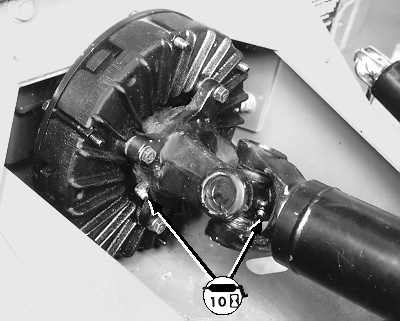

Slip Clutch

OUO6085,000057E -19-24APR09-2/4

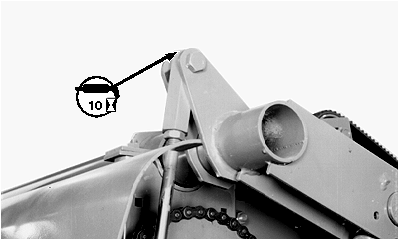

Tension Arm and Cylinder Pivots

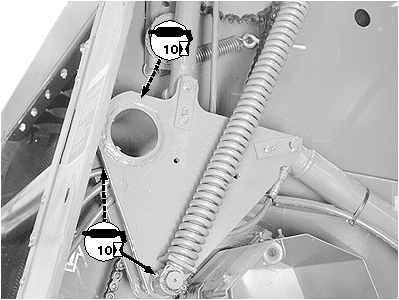

Lubricate tension arm and cylinder pivots on both sides of machine.

E40179

Left-Hand Side Shown

E39230

OUO6085,000057E -19-24APR09-3/4

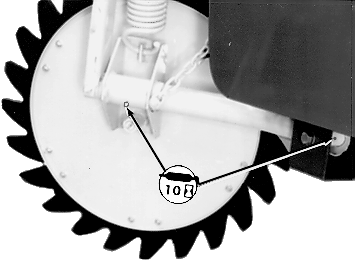

Gathering Wheels and Support Pivot (If Equipped)
E39589
