Adjusting Twine Cutter-to-Twine Arm

causym CAUTION: Twine arms can move unexpectedly. Keep hands out of twine arm path to avoid crushing. Turn off power BEFORE servicing or adjusting twine arms or twine cutter mechanism.

Stay out of the path of twine arms at all times when power to twine arms is ON.

Twine knife has two cutting edges. Be careful when working around the knife. It is sharp.

1. Remove crop material from knife and hex anvil area.

E47598
TS268

OUO6085,00005B6 -19-19JUN07-1/2

NOTE: Dimension (F) applies to the front arm. Rear arm must clear the bottom of the twine knife.

2. Move twine arms until front twine arm tube (E) is centered over hex anvil (D) as follows:

    Electric Twine Wrap;

  • Turn tractor key to ON position. Do not start tractor engine.
  • Turn monitor-controller ON.
  • While in TWINE mode, press monitor-controller EXTEND key (B) to move front twine arm tube until centered over hex anvil.
  • Turn monitor-controller OFF. Turn tractor key to OFF position. Remove key.

3. Open left-hand door and loosen nuts (C).

4. Adjust twine cutter assembly, so clearance (F) between knife hex anvil (D) and twine arm tube (E) is within specifications. Twine cutter bracket should be level (parallel with bottom edge of frame) .

Specification

Knife Hex Anvil-to-Front Twine Arm Tube -Clearance 0.5-3.5 mm (0.020-0.138 in.)

5. Tighten nuts (C).

6. If rear twine arm contacts bottom side of knife support and minimum clearance in Step 4 is obtained, bend twine cutter bracket so hex anvil is parallel to twine arm.

7. Check knife adjustment. (See CHECKING KNIFE ADJUSTMENT in this section.)

E52523

BaleTrak Pro Monitor-Controller

E40624


A-Twine Symbol
B-EXTEND Key
C-Nuts

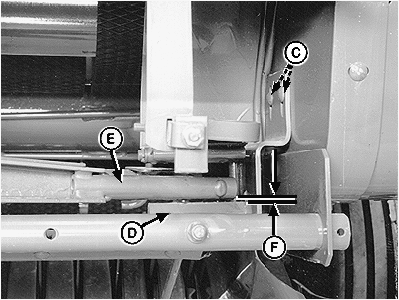

D-Knife Hex Anvil
E-Front Twine Arm Tube
F-Clearance
