Adjustable Twine Guide(s)

NOTE: For 458 and 458S baler, only a left-hand twine guide is used. 558 baler uses two twine guides.

Adjustable twine guide(s) (A) are used to move the placement of the twine closer to the center of the bale. This is especially useful when baling slick grasses and straw.

Twine end wrap distance from end of bale can be adjusted from 89-190 mm (3-1/2-7-1/2 in.) at 25 mm (1 in.) increments.

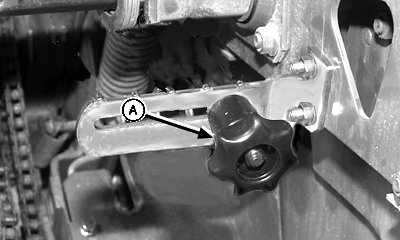

A-Twine Guide

OUO6085,0000799 -19-05JUN07-1/1
