Wheel Spindle Positions on 458 and 458S Balers with 31 x 13.5-15 Tires and MegaWide™ Plus Pickup
NOTE:
Wheel spindle position controls baler height and feeding capacity.
Normal position
is recommended for most baling conditions.
-
Recommended with bale ramp.
Raised position
is recommended for straw crops with tall stubble and soft ground conditions.
-
Recommended with bale ramp.
-
Pickup teeth may touch the ground with pickup completely lowered depending on tractor drawbar height. Recommended to adjust height with at least 25 mm (1 in.) ground clearance.
-
Tighten nuts to specification.
Specification
|
Wheel Spindle Mounting Hardware
-Torque
|
237 N·m
|
(175 lb.-ft.)
|
If wheel spindle position needs changed, refer to ADJUSTING WHEEL SPINDLES in this section.

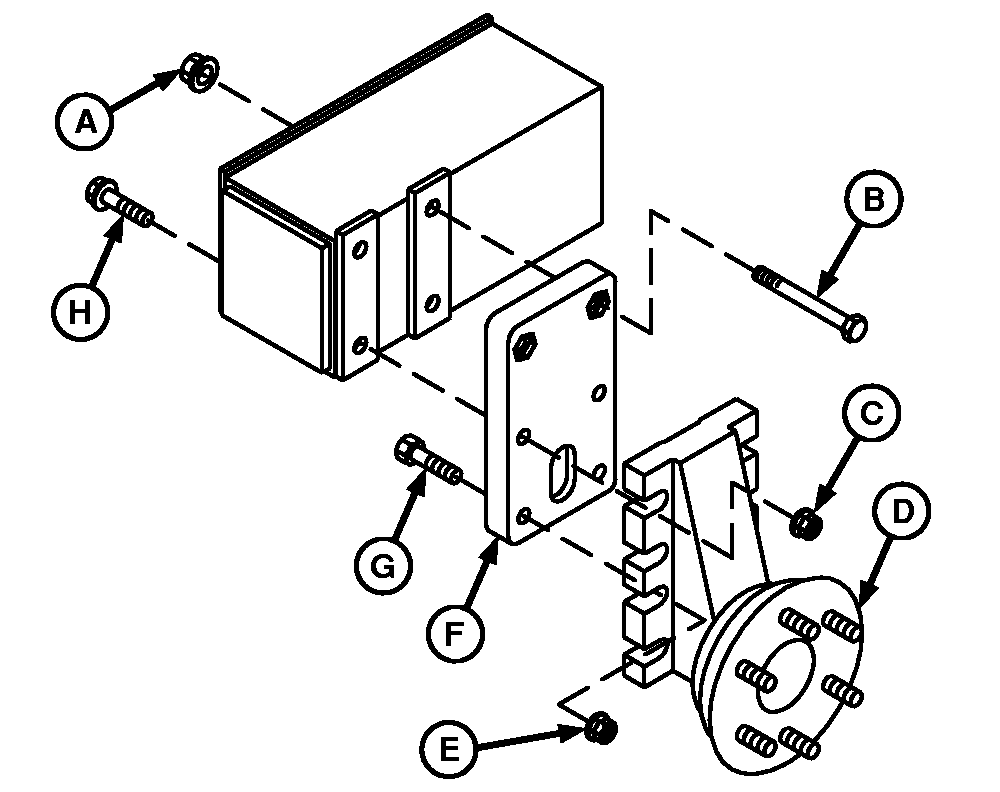

A-Flange Nut, M16 (2 used)
B-Cap Screw, M16 x 150-8.8 (2 used)
C-Flange Nut, M16 (2 used)
D-Hub
E-Flange Nut, M16 (2 used)
F-Space Plate
G-Cap Screw, M16 x 60-8.8 (2 used)
H-Cap Screw, M16 x 150-8.8 (2 used)
|
Normal Position
Raised Position
|
