Wheel Spindle Positions on 558 Balers with 31 x 13.5-15 Tires and MegaWide™ Plus Pickup
NOTE:
Wheel spindle position controls baler height and feeding capacity.
Normal position
is recommended for most baling conditions.
-
Recommended with bale ramp.
Raised position
is recommended for straw crops with tall stubble and soft ground conditions.
-
Recommended with bale ramp.
-
Pickup teeth may touch the ground with pickup completely lowered depending on tractor drawbar height. Recommended to adjust height with at least 25 mm (1 in.) ground clearance.
-
Tighten nuts to specification.
Specification
|
Wheel Spindle Mounting Hardware
-Torque
|
237 N·m
|
(175 lb.-ft.)
|
If wheel spindle position needs changed, refer to ADJUSTING WHEEL SPINDLES in this section.
A-Flange Nut, M16 (2 used)
B-Cap Screw, M16 x 150-8.8 (2 used)
C-Flange Nut, M16 (2 used)
D-Hub
E-Flange Nut, M16 (2 used)
F-Washer, 17 x 34 x 4 mm (4 used)
G-Spacer Plate
H-Cap Screw, M16 x 80-8.8 (2 used)
I-Cap Screw, M16 x 180-10.9 Flange Head (2 used)
|

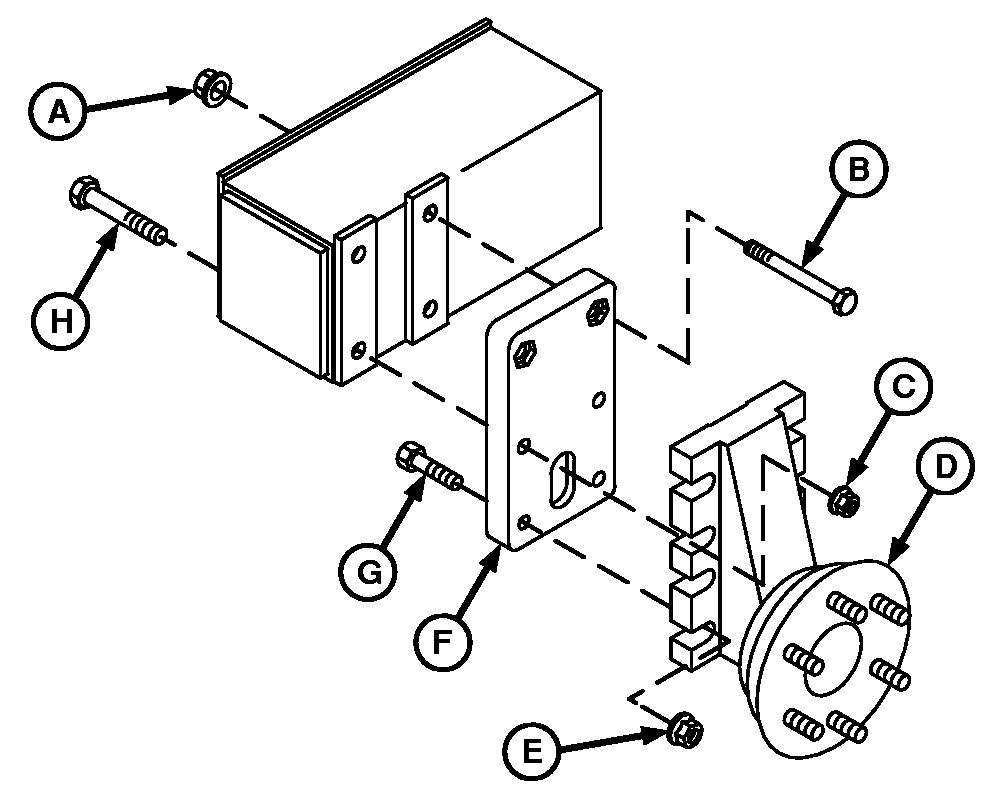

Normal Position

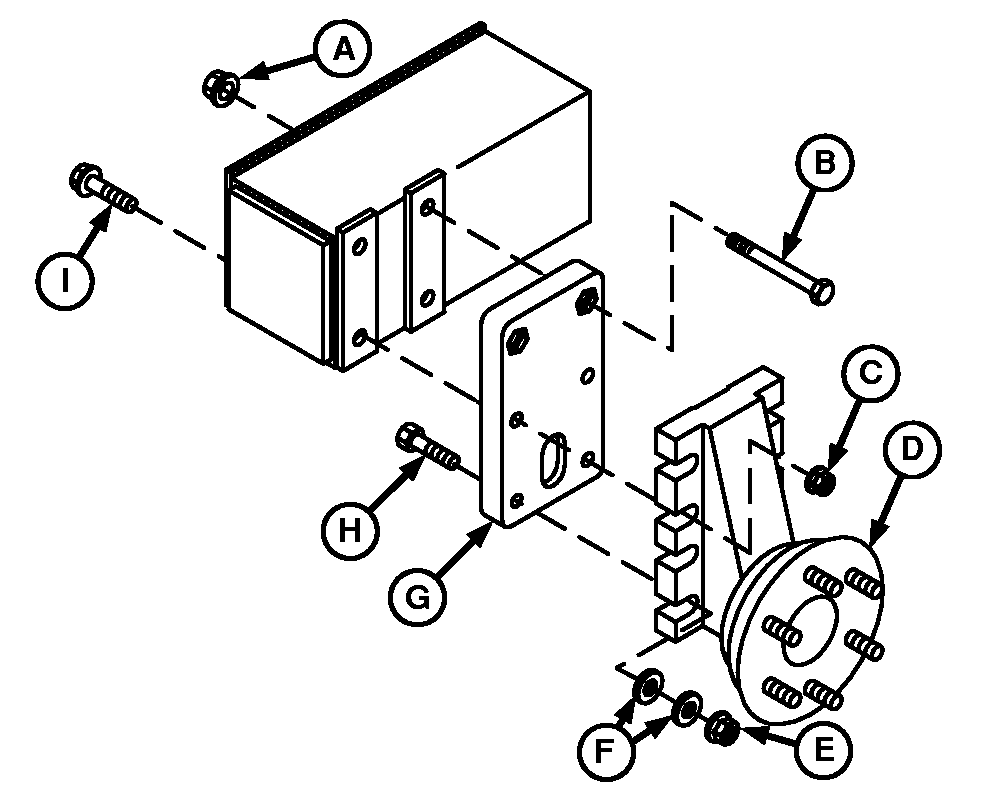

Raised Position
|
