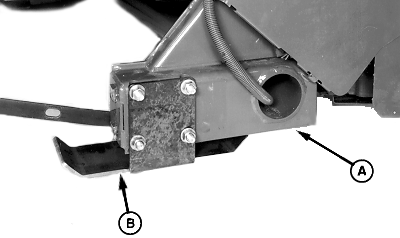

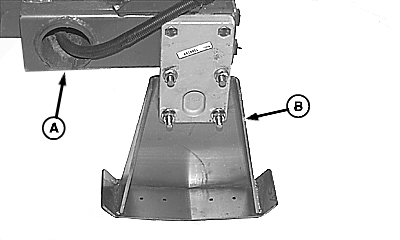

Prepare to Install Wheel Spindles and TiresIMPORTANT: When raising baler with a jack or hoist, place a jackstand or equivalent support under baler frame before removing shipping skid (B). Avoid placing jackstand under MegaWide™ pickup frame. 1. Park baler on level surface.2. Using a jack or hoist, raise one side of baler. Place a jackstand or equivalent support under baler frame at location (A). 3. Remove and discard shipping skid (B). Retain hardware and spacer plate, if equipped, to install spindles.
|
|
