Routing Twine-Right-Hand Side (Rear Arm)

NOTE: Detailed threading diagrams are located at right-hand side of tongue.

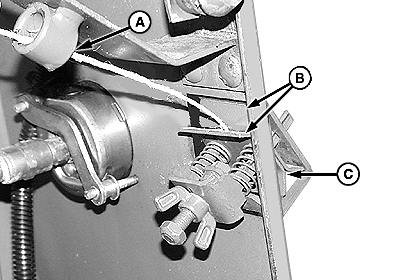

1. Pull twine through front guide (A) at front of twine box.

2. Insert twine between tension plates (B) and pull out through front side (C).


A-Front Guide
B-Tension Plates
C-Front Side of Baler

E48927

PP98408,0000125 -19-22SEP09-1/8

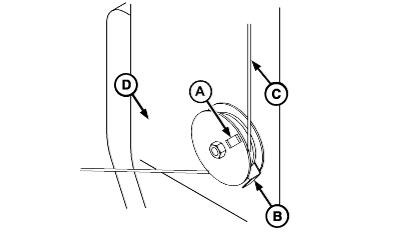

3. When using plastic twine and small sisal twine, wrap twine a FULL turn around twine moving indicator (A). Twine should wrap behind strand which comes down from twine box. Check that indicator is free to spin.


A-Twine Moving Indicator
B-Twine guide
C-Twine
D-Baler Front Sheet

E54349

Left-Hand Side Shown

PP98408,0000125 -19-22SEP09-2/8

NOTE: Wrapping large sisal twine a full turn around the indicator may cause the twine to cling to itself and break or cause excessive twine tension.

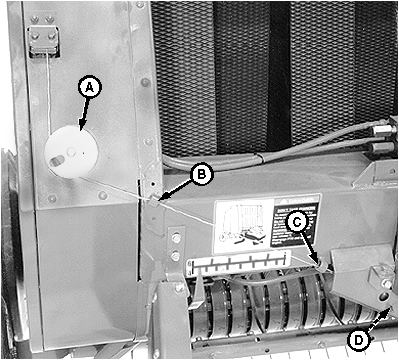

4. When using large sisal twine, route twine around indicator (A) without making a full turn.

5. Route twine through guides (B-D).


A-Indicator
B-Guide
C-Guide (558 only)
D-Guide

E48788

558 Shown

PP98408,0000125 -19-22SEP09-3/8

causym CAUTION: Twine arms can move unexpectedly. Keep hands out of twine arm path to avoid crushing. Turn off power BEFORE servicing or adjusting twine arms or twine cutter mechanism.

Stay out of the path of twine arms at all times when power to twine arms is ON.

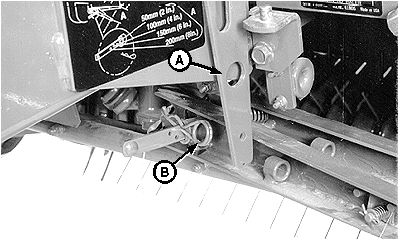

6. Remove spring pin (B).

7. Lift twine arm stop (A) and move front twine arm away from rear twine arm.


A-Twine Arm Stop
B-Spring Pin

E47598
E40126

PP98408,0000125 -19-22SEP09-4/8

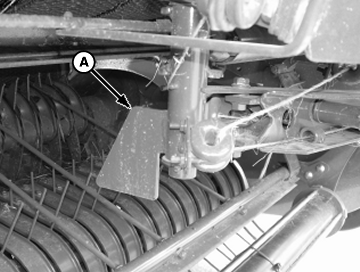

8. Ensure twine is routed over top of baffle upstop flag (A).


A-Baffle Upstop Flag

E54717

MegaWide Pickup Only

PP98408,0000125 -19-22SEP09-5/8

NOTE: Front twine arm is removed for illustration purpose.

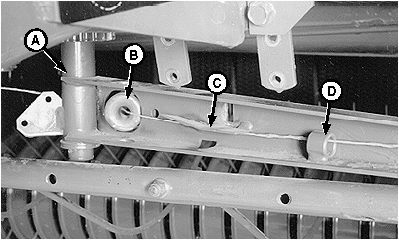

9. Route twine behind arm pivot (A), through guide (B), under "tab" (C) and through guide (D).


A-Arm Pivot
B-Guide
C-Tab
D-Guide

E40127

PP98408,0000125 -19-22SEP09-6/8

NOTE: Remove any crop buildup from tension plates before threading twine.

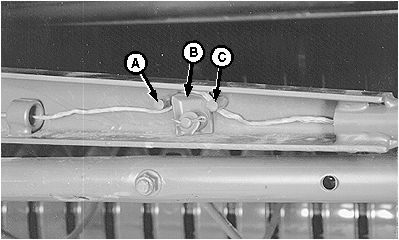

10. Route twine under guide pin (A), over top of tension plate (B) and under guide pin (C). Pull on twine to get twine between plates.


A-Guide Pin
B-Tension Plate
C-Guide Pin

E40128

PP98408,0000125 -19-22SEP09-7/8

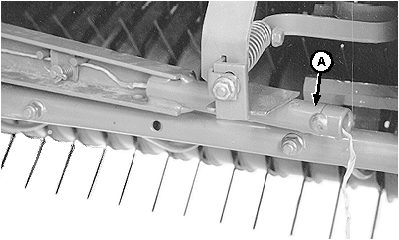

11. Pull twine through twine tube (A). Pull on twine to remove slack between guides. Twine pull should be within specifications with twine perpendicular to the twine arm. To adjust twine tension, refer to ADJUSTING TWINE TENSION in Operating the Baler section.

Specification

Twine Tension -Pull (Force) 22-45 N (5-10 lb. force)

12. Cut twine 305-381 mm (12-15 in.) beyond end of twine tube (A).

13. Lift twine arm stop and move front twine arm toward rear twine arm. Install spring pin, removed in Step 6, in one of the four positions for desired twine spacing.

  • BaleTrak ™ Pro System; See SETTING TWINE SPACING in Operating Baler with BaleTrak ™ Pro System section.

14. Route twine through front arm. (See ROUTING TWINE-LEFT-HAND SIDE [FRONT ARM] in this section.)

E40129


A-Twine Tube

BaleTrak is a trademark of Deere & Company
