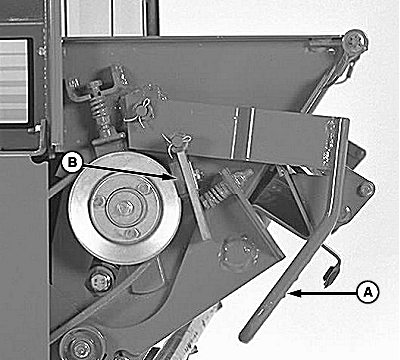

Manually Releasing Net Wrap Brake1. Disengage PTO, shut off tractor engine and disconnect monitor-controller power plug from tractor convenience outlet.2. Open net wrap cover. 3. Move lever (A) out and back to disengage roller brake pad (B). NOTE: Brake torque should be checked. Refer to CHECKING AND ADJUSTING NET WRAP FEED ROLL BRAKE in Service-Net Wrap section. 4. To reengage net wrap drive, return lever (A) to engaged position and check that pad (B) contacts belt pulley. 5. Close net wrap cover. |
|
PP98408,0000126 -19-17JUN09-1/1 |
