Setting Bale Diameter

Initial setting for bale diameter is 142 cm (56 in.).

Bale diameter can be set from 91 to 152 cm (36 to 60 in.) at 1 cm (0.5 in.) increments.

  • Press BALE DIAMETER key (A) and PLUS key to raise diameter setting.
  • Press BALE DIAMETER key (A) and MINUS key to lower diameter setting.

Optional variable core diameter setting must be at least 10 cm (4 in.) under bale diameter setting.

Variable core setting need not be changed if bale size is increased, unless desired.

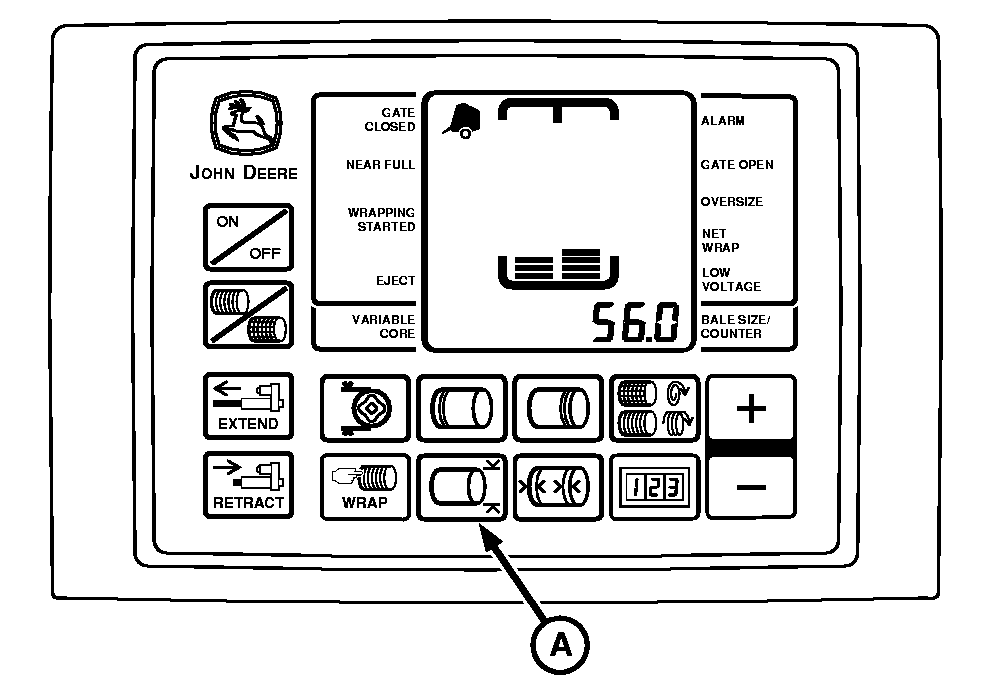

E58128


A-Bale Diameter Key

PP98408,000012C -19-19OCT09-1/1
