Check Wheel Nut Torque

NOTE: Wheel spindles and tires are factory installed in normal position on the 458 and 458S balers with MegaWide™ Plus pickup.

NOTE: Wheel spindle position controls baler height and feeding capacity.

NOTE: Normal position is used for most baling conditions. For other crop conditions, refer to WHEEL SPINDLE POSITIONS in Preparing the Baler section of the operator's manual.

IMPORTANT: 458 and 558; Install wheels with 11L-14 tires with valve stems toward the OUTSIDE.

Install wheels with 31 x 13.5-15 tires with valve stems toward the INSIDE.

Incorrect assembly can cause wheel nuts to loosen.

Whenever a wheel has been removed and installed, check torque after one hour of operation. Wheel nuts must be tightened to specifications.

Specification

Wheel Nuts -Torque 115 N·m (85 lb.-ft.)

  • 458 and 558; Install wheel with 11L-14 tires with valve stem (A) toward the OUTSIDE. Fasten with six 1/2 in. nuts.
  • Install wheel with 31 x 13.5-15 tire with valve stem toward the INSIDE. Fasten with six 1/2 in. nuts.
  • Repeat procedure on opposite side.

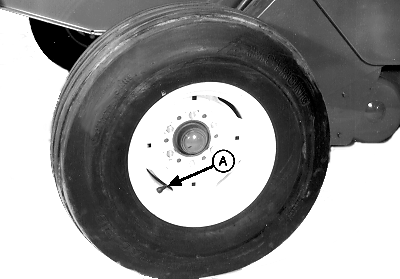

E39894

11L-14 Tires Shown


A-Valve Stem

PP98408,0000147 -19-02OCT09-1/1
