Annually

Baler Wheel Bearings and Gathering Wheel Bearings (If Equipped)

Remove the wheels; then clean, repack, and adjust bearings. Use lithium base EP or an equivalent SAE multipurpose type grease, or wheel bearing grease.

E39740

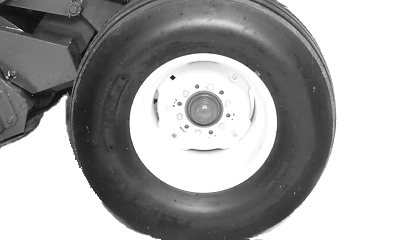

Baler Wheel Shown

PP98408,00001DD -19-17SEP09-1/3

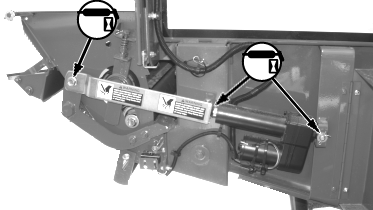

COVER-EDGE Net Wrap Actuator (If Equipped)

Lubricate rod end and base end actuator and link mounting pins with SAE30 or heavier oil.

E54533

PP98408,00001DD -19-17SEP09-2/3

Gear Case

Drain and refill gear case annually.

NOTE: Driveline removed for illustration purposes.

IMPORTANT: Do not over fill gear case as this will result in overheating and oil leakage.

Check level of lubricant with dipstick. Lubricant must fall between grooves on dipstick.

Refill as necessary using SAE 85-140 API GL-5 gear lubricant. Drain and refill gear case once each season.

Specification

Gear Case -Capacity 1.2 L (1.25 U.S. qt)

E57911

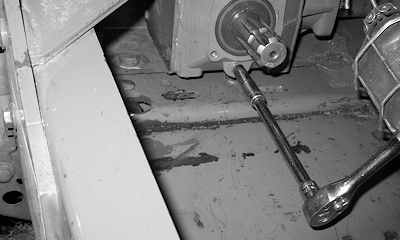

Removing Drain Plug

PP98408,00001DD -19-17SEP09-3/3
