Install Slow Moving Vehicle (SMV) Sign in Operating Position

Without COVER-EDGE Net Wrap Unit;

1. Remove two M6 x 20 mounting cap screws, nuts and SMV sign.
2. Reinstall sign with reflective side away from machine (as shown). Fasten sign to machine using existing hardware.

With COVER-EDGE Net Wrap Unit;

1. Remove protective covering from sign.

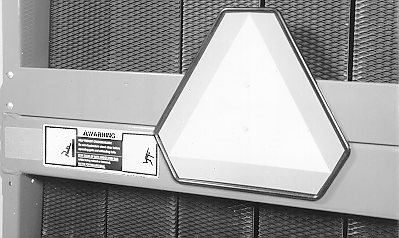

E39568

Without COVER-EDGE Net Wrap Unit Shown

PP98408,0000212 -19-17SEP09-1/1
