Routing Twine-Left-Hand Side (Front Arm)

1. Route twine through rear arm. (See ROUTING TWINE-RIGHT-HAND SIDE [REAR ARM] in this section.)

PP98408,0000222 -19-22SEP09-1/7

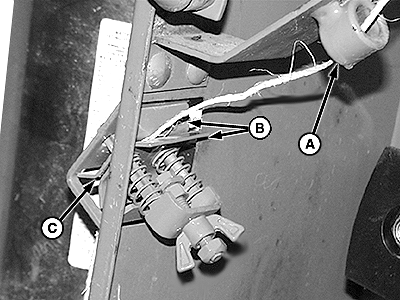

2. Pull twine through front guide (A) at front of twine box.

3. Insert twine between tension plates (B) and pull out through front side (C).


A-Front Guide
B-Tension Plates
C-Front of Baler

E48928

PP98408,0000222 -19-22SEP09-2/7

4. When using plastic twine and small sisal twine, wrap twine a FULL turn around twine moving indicator (A). Twine should wrap behind strand which comes down from twine box. Check that indicator is free to spin.


A-Twine Moving Indicator
B-Twine guide
C-Twine
D-Baler Front Sheet

E54349

Left-Hand Side Shown

PP98408,0000222 -19-22SEP09-3/7

NOTE: Wrapping large sisal twine a full turn around the indicator may cause the twine to cling to itself and break or cause excessive twine tension.

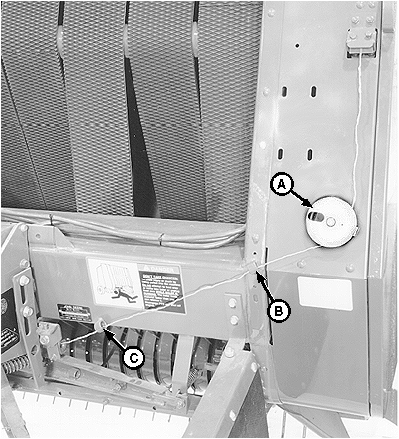

5. When using large sisal twine, route twine around indicator (A) without making a full turn.

6. Route twine through guide(s) (B) and (C) (558 only).


A-Twine Indicator
B-Twine Guide
C-Twine Guide (558 Only)

E40165

558 Shown

PP98408,0000222 -19-22SEP09-4/7

causym CAUTION: Twine arms can move unexpectedly. Keep hands our of twine arm path to avoid crushing. Turn off power BEFORE servicing or adjusting twine arms or twine cutter mechanism.

Stay out of the path of twine arms at all times when power to twine arms is ON.

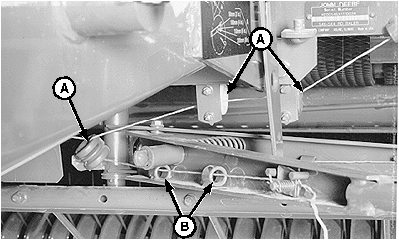

7. Route twine through guides (A) and (B).


A-Twine Guides
B-Twine Guides

E47598
E40140

PP98408,0000222 -19-22SEP09-5/7

NOTE: Remove any crop buildup from tension plates before threading twine.

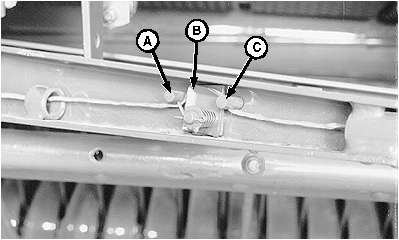

8. Route twine under guide pin (A), over top of tension plate (B) and under guide pin (C). Pull on twine to get twine between plates.


A-Guide Pin
B-Tension Plate
C-Guide Pin

E40141

PP98408,0000222 -19-22SEP09-6/7

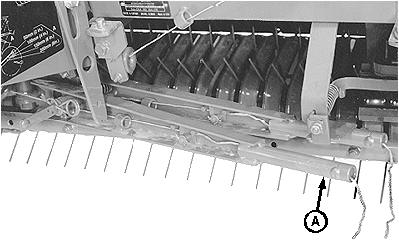

9. Pull twine through twine tube (A). Pull on twine to remove slack between guides. Twine pull should be within specifications with twine perpendicular to the twine arm. To adjust twine tension, refer to ADJUSTING TWINE TENSION in Operating the Baler section.

Specification

Twine Tension -Pull (Force) 22-45 N (5-10 lb. force)

10. Cut twine 305-381 mm (12-15 in.) beyond end of twine tube (A).


A-Twine Tube

E40142

PP98408,0000222 -19-22SEP09-7/7
