Adjusting Twine Tension

causym CAUTION: To avoid injury or death by being pulled into the machine:

DO NOT attempt to feed twine into baler or pull twine from twine arms WHILE BALER IS RUNNING. The baler feeds material faster than you can release it.

Disengage PTO and shut off tractor engine.

Twine arms can move unexpectedly. Keep hands out of twine arm path to avoid crushing. Turn off power to twine arms BEFORE servicing or adjusting twine arms or twine cutter mechanism.

Stay out of the path of twine arms at all times when power to twine arms is ON.

NOTE: It may be necessary to adjust twine tension when changing to a different size twine or when changing from sisal to plastic.

Left-hand side (front arm) shown. Right-hand side (rear arm) tension plates are the same.

Twine tension is controlled by spring-loaded tension plates (A).

Adjust twine tension while pulling twine perpendicular to end of twine tube.

  • If twine tension is too high, the twine may not start to wrap around the bale or twine may break.
  • If twine tension is too loose, the twine may not hold the bale adequately.

To adjust twine tension:

1. Lower pickup to avoid twine arm from bending pickup teeth.

TS679
E47598
E54949

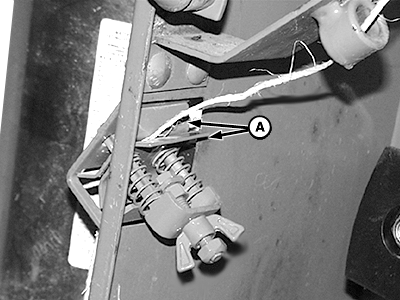

Left-Hand Tension Plate Shown


A-Tension Plates (Door Bands)

PP98408,0000224 -19-22SEP09-1/3

2. Move twine arms to home position. Make sure twine is routed correctly. (See ROUTING TWINE-RIGHT-HAND SIDE [REAR ARM] and LEFT-HAND SIDE [FRONT ARM] in Preparing the Baler section.)

PP98408,0000224 -19-22SEP09-2/3

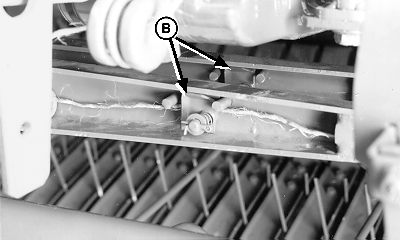

3. Remove crop buildup from tension plates (A) located on door bands and from tension plates (B) located on twine arms.

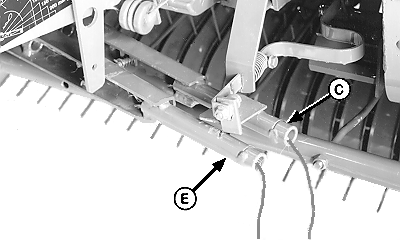

4. Attach spring scale to twine from rear twine arm (C). Pull twine perpendicular to the twine arm. Twine pull should be within specifications.

Specification

Twine Pull -Force 22-45 N (5-10 lb. force)

  • Tighten wing nut (D) to increase tension on twine.
  • Loosen wing nut (D) to decrease tension on twine.

5. Repeat Step 4 to adjust twine tension for front twine arm (E).

6. Cut twine 305-381 mm (12-15 in.) beyond end of twine arms (C and E)


A-Tension Plates (Door Bands)
B-Tension Plates (Twine Arms)
C-Rear Twine Arm
D-Wing Nut
E-Front Twine Arm

E47616

Left-Hand Tension Plate Shown

E39752
E39751

PP98408,0000224 -19-22SEP09-3/3
