Adjusting Lower Belt Drive Roll Chain

    To ensure that all slack is removed from chains;

  • Close gate and engage PTO a few seconds.
  • Stop tractor engine and remove key.

1. Open left-hand side door.

PP98408,0000225 -19-22SEP09-1/2

2. Loosen idler sheave nut (A).

3. Adjust idler:

  • 458 and 558; Push idler DOWN against chain (B) to specifications.
  • 458S; Push idler UP against chain (B) to specifications.

Specification

Idler-to-Chain -Force 22-44 N (5-10 lb. force)

4. Tighten idler nut (A) to specifications.

Specification

Idler Nut -Torque 163 N·m (120 lb.-ft.)

5. Close left-hand side door.


A-Idler Sheave Nut
B-Chain

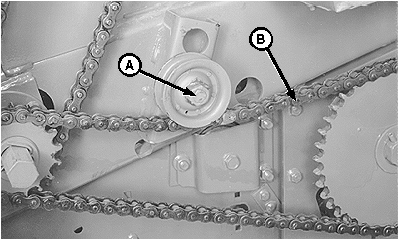

E39266

458 and 558

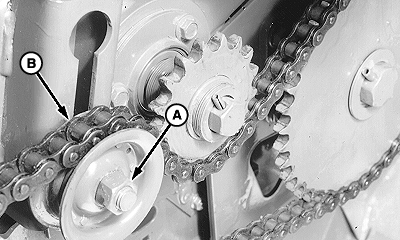

E42506

458S

PP98408,0000225 -19-22SEP09-2/2
