Install Gauge Wheels (Regular Pickup)

CAUTION: While working inside or around the baler with an open gate, the tension arm must be fully raised and against its stops and gate lock lever must be moved to locked position (A). Use this safety feature anytime the gate is open. Close the gate anytime the baler must be left unattended.

When positioning the gate to provide access for service, always be sure tension arm is fully raised, and against its stops. This is to prevent the gate from rotating downward unexpectedly while service work is being performed. ALWAYS raise the gate fully and lower it to the desired opening height before engaging the gate lock. Failure to do this may result in serious injury or death.

NOTE: Tension arm must remain up against tension arm stops.

1. Start tractor engine, full raise gate, and slowly lower gate to slack belts.

2. Shut off tractor engine and remove key.

3. Rotate interlock lever (B) and move gate lock lever (A) to locked position (shown).

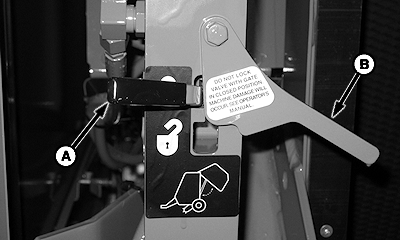

A-Gate Lock Lever
B-Interlock Lever

PP98408,0000231 -19-19OCT09-1/2

5. Move gate lock lever to unlocked position.

6. Start tractor engine and lower gate completely.

7. Shut off tractor engine and remove key.

8. Open right-hand side door and remove hardware package from twine box.

9. Install gauge wheels. (See GAUGE WHEEL ASSEMBLY in this section).

A-Gauge Wheels
