Install Gauge Wheel Assembly (MegaWide™ Plus Pickup)

NOTE: Gauge wheel are shipped between main frame crossbeam and belts, except silage models, which are secured to trailer deck.

1. Assemble wheel and gauge arm in the following manner:

  • Stand wheel (A) upright. Long hub points toward baler.
  • Insert bushing/spacer (C) inside wheel bearings.
  • Place a washer (E) on each side of wheel.
  • Insert bolt (B) through washers, wheel (A) and gauge wheel arm so threads are facing towards baler.
  • Place flange nut (D) on cap screw (B).

2. Tighten cap screw and nut, ensure wheel will rotate freely.

3. Repeat Steps 1 and 2 for opposite side.

4. Adjust gauge wheels. (See ADJUST GAUGE WHEELS in the Final Inspection and Adjustments section.)


A-Gauge Wheel
B-Cap Screw
C-Bushing/Spacer
D-Flange Nut
E-Washer

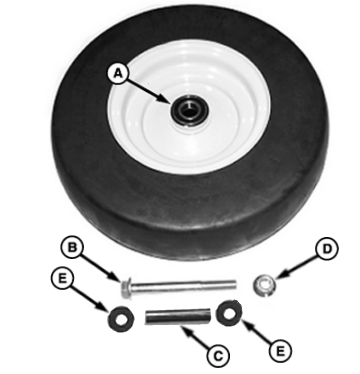

E54423

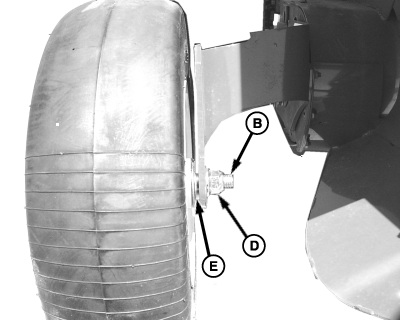

E54251

PP98408,0000233 -19-22SEP09-1/1
