Install Jack

1. Park baler on level surface.

2. Block both wheels at front and rear to prevent baler rolling.

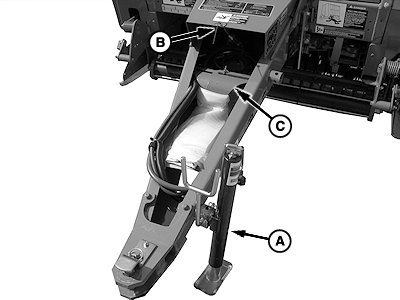

3. Raise tongue with appropriate lifting device. Remove jack from storage location. Place in vertical location (A) and secure with PTO support and quick-lock pin.

4. Remove wire (B) from shield.

5. (MegaWide™ Plus pickup only) Remove gauge wheel arm (C) from tongue. Set aside for installing gauge wheel arm assembly.

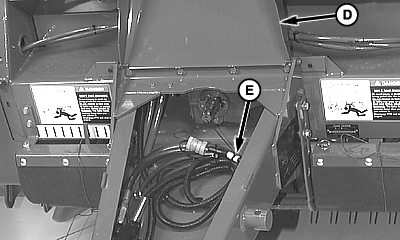

6. Raise PTO shield (D) and remove tie strap (E) from hoses and wiring harness.


A-Vertical Position
B-Wire
C-Gauge Wheel Arm
D-PTO Shield
E-Tie Strap

E57045
E57047

PP98408,000027C -19-01OCT09-1/1
