Safety Signs

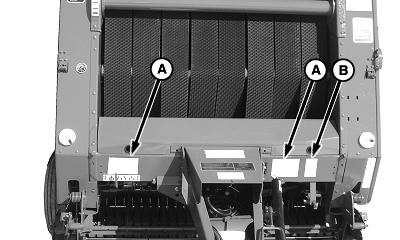

(A) - Danger Do not take chances. To avoid injury or death by being pulled into the machine:

Do not attempt to feed crop or twine into baler or unplug feed area while baler is running. The baler feeds material faster than you can release it.

Disengage PTO and shut off engine.

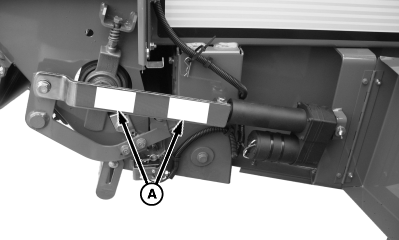

(B) - Warning Avoid crushing between twine arm and twine cutter. Twine arm can move unexpectedly. Keep hands out of its path and turn off power.

PP98408,0000326 -19-29OCT09-1/10

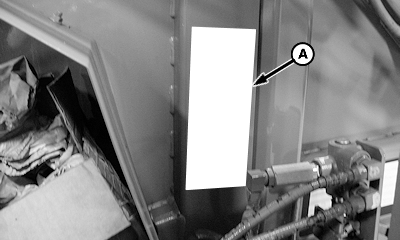

NOTE: Decal (A) is only for machines equipped with MegaTooth pickup.

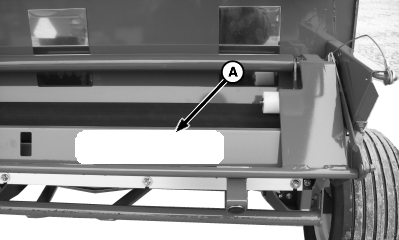

(A) - Warning Avoid injury from thrown objects. Keep curtains in place. Do not operate near bystanders.

(B) - Danger Entanglement in rotating driveline can cause serious injury or death. Keep all shields in place. Avoid contact with rotating parts.

PP98408,0000326 -19-29OCT09-2/10

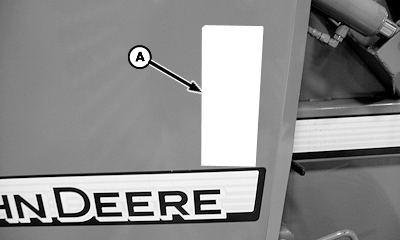

(A) - Warning Avoid serious personal injury from fire. Do not attempt to extinguish a fire that is too far advanced. See Operator's Manual for information about preventing and extinguishing fires before operating.

PP98408,0000326 -19-29OCT09-3/10

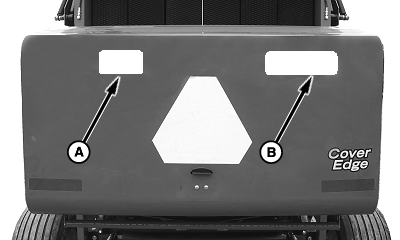

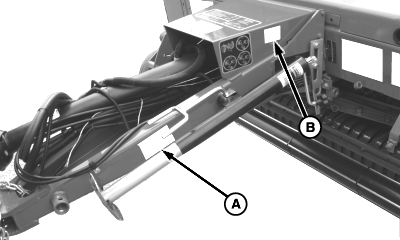

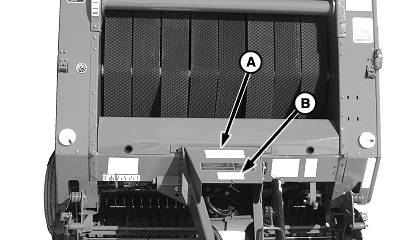

(A) - Warning Do not exceed this implement's maximum transport speed of 32 km/h (20 mph). Exceeding this speed may result in loss of control during transport or braking and serious injury or death. Transport only with a properly ballasted tractor and a properly attached safety tow chain. Do not transport with a motor vehicle. Reduce speed and use additional caution when on inclines, towing under adverse surface conditions, and turning.

(B) - Caution Operate only with 540 rpm PTO.

PP98408,0000326 -19-29OCT09-4/10

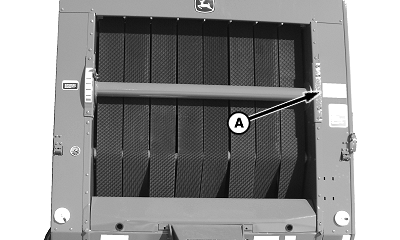

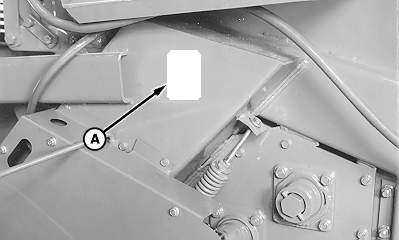

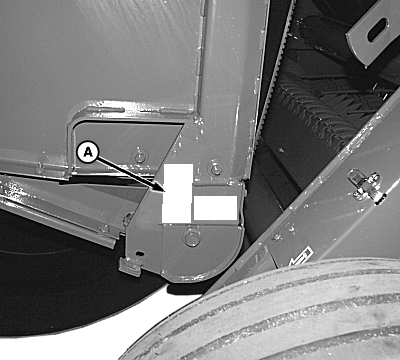

(A) - Warning Engage gate lock before working on or around gate in raised position. Stand clear before unlocking gate lock.

PP98408,0000326 -19-29OCT09-5/10

(A) - Caution Keep all shields in place. Disengage and shut off all engine and/or motor power before servicing or unclogging machine. Keep hands, feet, and clothing away from power driven parts.

PP98408,0000326 -19-29OCT09-6/10

(A) - Warning Help prevent crushing injury. Be sure bystanders stand clear before operating gate and unloading bale. Stay clear of gate and/or pushbar while being raised or lowered.

(B) - Warning Help prevent crushing injury. Be sure bystanders stand clear before operating gate and unloading bale. Watch for rolling bale.

PP98408,0000326 -19-29OCT09-7/10

(A) - Warning Avoid injury from entanglement in moving rolls. Disengage drive and shut off engine before servicing.

Knife is extremely sharp and can move without warning. Shut off machine before servicing knife. Keep hands clear of sharp edges.

PP98408,0000326 -19-29OCT09-8/10

(A) - Warning Knife is extremely sharp and knife arm can move without warning. Shut off all power before servicing knife. Keep hands clear of sharp edges.

PP98408,0000326 -19-29OCT09-9/10

NOTE: Decal (A) is located on left- and right-hand sides of machine

(A) - Warning Avoid injury to fingers. Shut off all power before servicing. Keep hands clear when machine is running.

PP98408,0000326 -19-29OCT09-10/10
