Install and Adjust Net Wrap Brush

1.
   E52520-UN-26JUN03


   E80107-UN-29SEP15

   A - COUNTER Key

   B - EXTEND Key

   C - RETRACT Key

   D - Wire Harness Connector

   Turn tractor key to ON position. Turn monitor-controller ON.

---




2. Ensure that monitor is in NET mode. Turn monitor OFF.

3. Press and hold COUNTER key (A) while turning monitor-controller ON. CH001 will appear in the digital display.

4. Continue to hold COUNTER key (A) and press PLUS key to advance to CH018. Release COUNTER key (A).

5. Press and hold EXTEND key (B) to move counterknife to the up position.

6. CAUTION: To avoid personal injury from unexpected knife movement, disconnect net wrap actuator wire connector or power plug when performing adjustment or working in area.

   Turn monitor-controller selector switch to OFF. Turn tractor key to OFF position. Remove key. Disconnect monitor-controller power plug from power source or disconnect plug at net wrap wire harness connector (D).

7. Open net wrap cover.

8. NOTE: If knife is bowed, bend brush away from steel roll between center bolts to maintain 1—3 mm (0.040—0.12 in.) clearance.

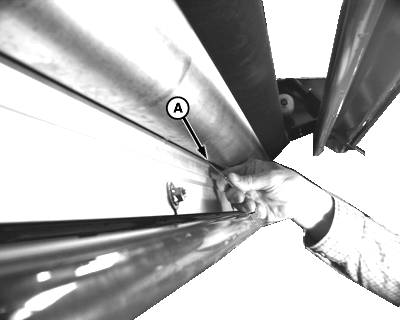

   E53030-UN-12JAN04

   A - Feeler Gauge

   Install brush with bristle holder offset, towards plated roll. Using a feeler gauge (A), set clearance between steel roll and aluminum brush holder bracket to dimension.

   Item	Measurement	Specification
   Brush-to-Steel Roll	Clearance	1—3 mm (0.040—0.12 in.)

---




9. Tighten hardware to specification.

   Item	Measurement	Specification
   Knife-to-Brush	Torque	55 N·m (40 lb.-ft.)

10. Rotate rolls to ensure that clearance remains within specification.

11. Check net wrap switch adjustment. (See ADJUST NET WRAP SWITCH in this section.)

12. Connect net actuator wire connector.

13. IMPORTANT: Make sure to move net wrap counterknife fully downward to home position. If baler is operated with counterknife at the up position, net will feed continuously during baling.

    Turn tractor key to ON position.

14. Press WRAP key on monitor-controller to move counterknife fully downward to the home position.

15. Turn tractor key to OFF position. Turn OFF monitor-controller.

16. Close net wrap cover.
