Check For Bent Rubber Crop Deflectors

1. NOTE: Bent rubber crop deflectors can prevent counterknife angle from raising high enough and net can wrap rubber roll or split net near edge and net can wrap #8 roll spirals.

   CAUTION: To avoid personal injury from unexpected knife movement, disconnect net wrap actuator wire connector or power plug when performing adjustment or working in area.


   E80106-UN-29SEP15

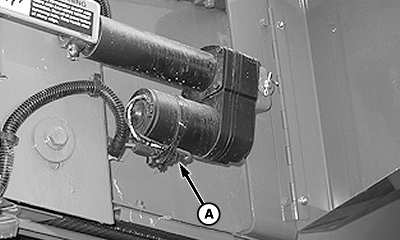

   A - Wire Harness Connector

   Turn monitor-controller selector switch to OFF. Turn tractor key to OFF position. Remove key. Disconnect monitor-controller power plug from power source or disconnect net actuator wire harness connector (A).

---




2. Open net wrap cover.

3.
   E58059-UN-08OCT09

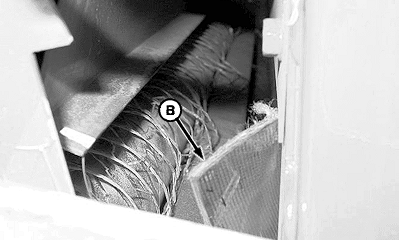

   B - Rubber Crop Deflector

   Perform a visual check if one or both rubber crop deflector's (A) are sticking out between outside belts and side sheet of baler.

---




4. If rubber crop deflector's (A) are sticking out between outside belts and side sheet of baler:

   • Remove rubber crop deflector's if not baling cornstalks, milo, or sorghum.
   • Reverse or replace rubber crop deflector's.
   • Trim top edge of rubber crop deflector's. (See your John Deere dealer.)
