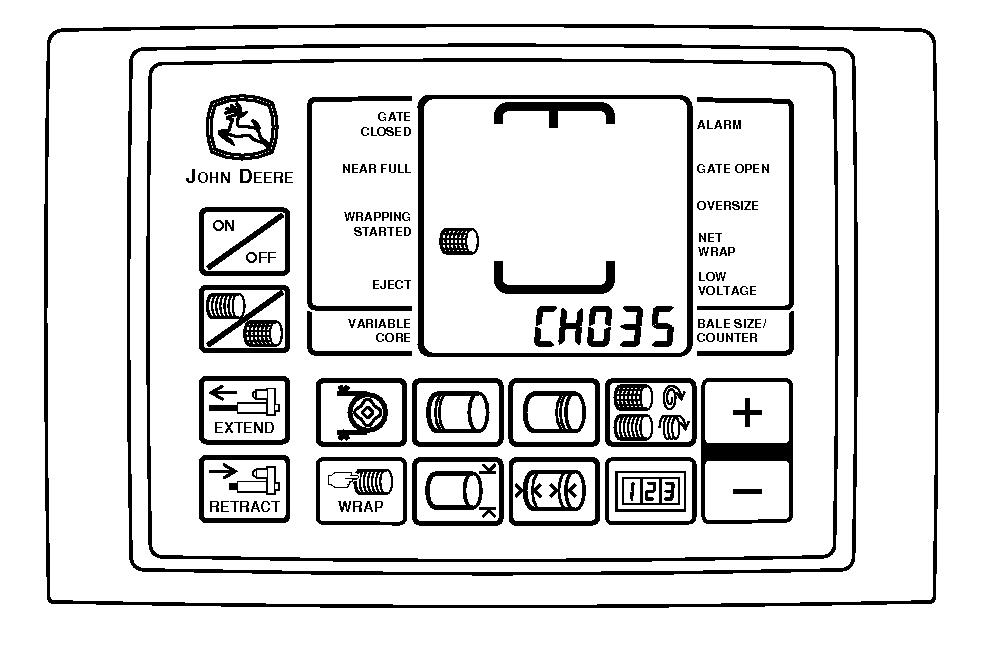

Adjust Bale Orientation (Channel 035)

E69424-UN-20FEB13

E69416-UN-13FEB13

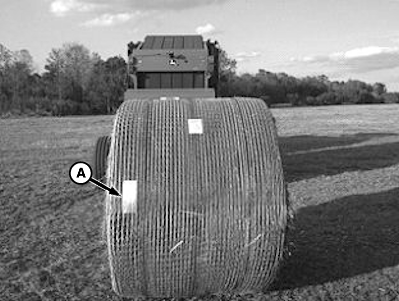

A - Aluminum Tape

Controls the position of bale when ejecting.

• This is the seam or overlap portion of the B-Wrap material.
• Seam must always be on the bottom of the bale or overlap is in a position to keep water from running into the bale.
• Aluminum tape (A) must be on left-hand side and back side of bale when facing rear of baler.

Need to enter value into monitor-controller on setup for B-Wrap.

• Starting point value of 640 (7 & 8 Series) or 320 (9 Series).
• This value must always be at least 90 counts (7 & 8 Series) or 45 counts (9 Series) more than channel 034.
• Value will change by 10 (7 & 8 Series) or 5 (9 Series) each time you press the PLUS or MINUS key.

IMPORTANT: Disengage bale push bar for B-Wrap operation.

• Bale push bar will affect seam location upon bale ejection and can damage B-Wrap material.

With the B-Wrap sensor tied into the oversize bale sensor, false bale oversize alarms can occur. If a false oversize bale alarm occurs, with the PTO off, examine the B-Wrap sensor on the bottom of the gate for the following:

1. A belt lace is stopped above the sensor. If this has occurred, move the belt lacing past the sensor by turning on the PTO briefly.
2. A foreign metal object is caught on or around the sensor. If this has occurred, remove the foreign material and verify that they error does not reoccur.
