Adjust Cut Position (Channel 034)

E69423-UN-20FEB13

E69427-UN-25FEB13

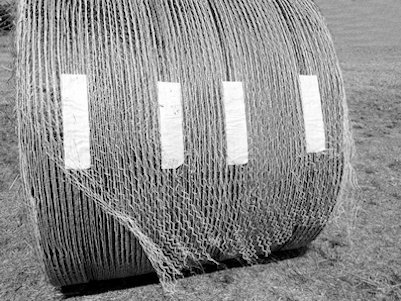

This Tail is Too Long, Should Be 2—12 Inches

Controls the length of net after the velcro.

• This is called the tail.
• Net should cut off a few inches past the velcro. Leaving long tail may cause wrap to pull off bale during handling.

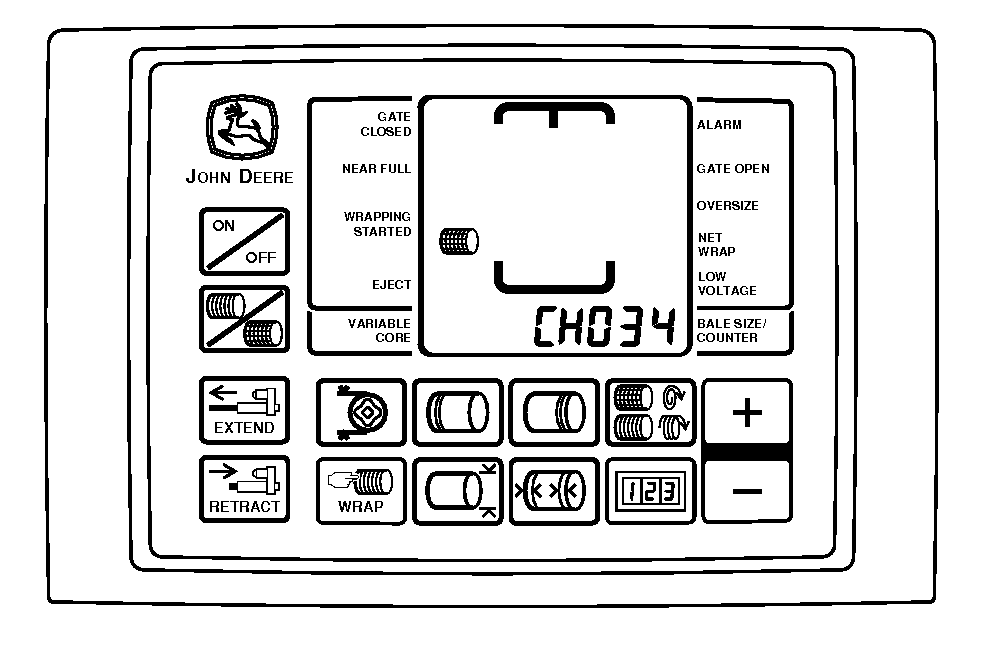

Need to enter value in monitor-controller memory for B-Wrap (customer channels).

• Value will change by 10 (7 & 8 Series — 24 & 21 tooth) and 5 (9 Series & BE32327 — 10 tooth) each time you press the PLUS or MINUS key.
• Starting point value of 440 (7 & 8 Series) or 220 (9 Series).
• Changing value with either increase (PLUS key) the length of the tail or decrease (MINUS key) the tail by approximately 228 mm (9 in.)
