Tractor Convenience Outlet

E66075-UN-19JUN12

A - Convenience Outlet

John Deere 55 Series, 5000, 5010, 6000, 7000, 7010, and 8000 Models

Standard convenience outlet (A) provides power for:

• BaleTrak™ Pro Monitor-Controller (If Equipped)
• Variable (Soft) Core Solenoid Valve (If Equipped)

Other tractor models without a convenience power outlet

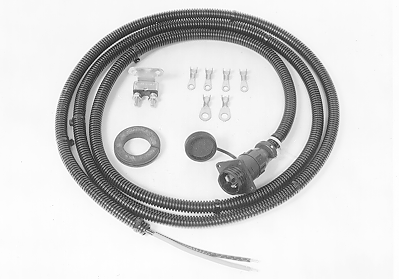

E39605-UN-27NOV95

Order convenience outlet kit AE50549 from your John Deere dealer. Kit consists of 12 gauge wires and a circuit breaker. When installing kit, attach the power and ground wires directly to the battery terminal clamp bolts, only.

IMPORTANT: If equipped with BaleTrak™ Pro, monitor-controller is polarity sensitive. The red lead from the monitor-controller power input MUST be installed on the positive (+) side of a 12 V system. Failure to do so will cause monitor-controller to not function.

Other tractor models with a convenience power outlet, equipped with BaleTrak™ Pro

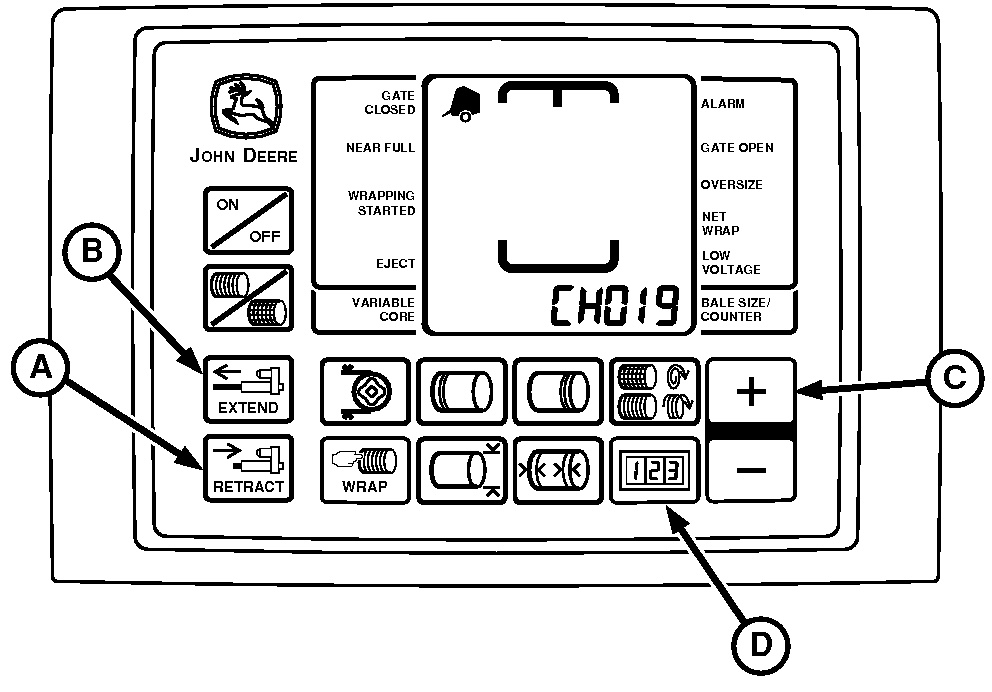

E52484-UN-24JUN03

A - RETRACT Key

B - EXTEND Key

C - PLUS Key

D - COUNTER Key

Complete the following check to determine if the convenience power outlet provides adequate power for the BaleTrak™ Pro system.

1. With tractor engine running and the monitor in twine mode, press and hold the COUNTER key (D) while turning on the monitor.

2. Continue to hold the COUNTER key and press PLUS key (C) until CH019 appears in the digital display.

3. Release COUNTER key (D). View voltage readout.

4. Using the EXTEND key (B), extend twine actuator slightly.

5. Push and hold the RETRACT key (A) until the actuator stalls out in cutoff position and note voltage displayed.

6. IMPORTANT: Monitor-controller is polarity sensitive. Red lead from monitor-controller power input MUST be installed on the positive (+) side of a 12 V system.

   NOTE: If a convenience outlet is needed, order convenience outlet (AE50549) from your John Deere dealer.

   If voltage is less than 9.7 V, install convenience outlet kit. Attach power and ground wires directly to battery terminal clamp bolts, only.
