Release Net Wrap Feed Roll Brake

The brake release disengages the net feed rolls. Release the brake when threading net wrap or servicing the net wrap unit.

1.

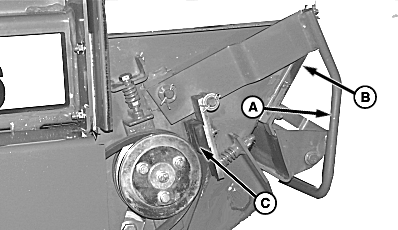

   E48357-UN-12JUL00

   A - Lever

   B - Latch

   C - Brake Pad

   Disengage PTO, shut off tractor engine, and disconnect monitor-controller power plug from tractor convenience outlet.

---




2. Open net wrap cover.

3. Pull lever (A) out and up and rest on latch (B) to disengage roller brake pad (C).

4. NOTE: Brake torque must be checked. See CHECK AND ADJUST NET WRAP FEED ROLL BRAKE in Service—Net Wrap section.

   To reengage net wrap drive, return lever (A) to engaged position and check that pad (C) contacts belt pulley.

5. Close net wrap cover.
