Attach Baler to Tractor Drawbar

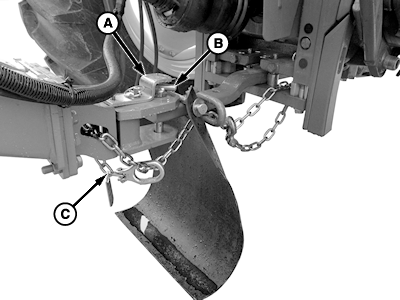

  1. E61064
    E61064-UN-30MAR12

    A - Bracket

    B - Hitch Pin

    C - Safety Chain

    Remove quick-lock pin, raise, and rotate bracket (A) 90°. Remove hitch pin (B).


  2. Back up tractor to baler. Align tractor drawbar with front of baler tongue.

  3. Engage tractor parking brake and place transmission in Park.

  4. Shut off tractor engine and remove key.

  5. Install hitch pin. Raise and rotate bracket (A) over hitch pin. Install quick-lock pin.

  6. Route safety chain (C) through loop on drawbar (if equipped) and connect to tractor drawbar supporting structure, as shown. Do not fasten to drawbar. remove all slack except what is needed for turns.

  7. Connect PTO driveline. (See CONNECT PTO DRIVELINE in this section.)

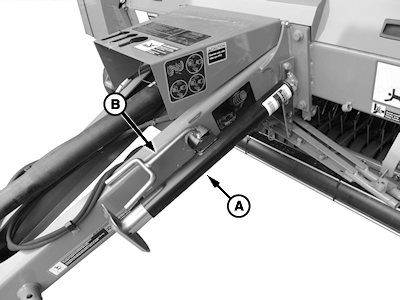

  8. E62318
    E62318-UN-04APR12

    A - Jackstand

    B - PTO Support

    Turn handle to take load off jackstand.


  9. Remove quick-lock pin, PTO support (B) and jackstand (A).

  10. IMPORTANT: Store jackstand (A) with handle toward baler to prevent water entering jack gearset.

    Install jackstand (A) in storage location (shown) with handle facing toward baler. Fasten PTO support (B) and quick-lock pin. Face PTO support towards front of tongue.
