Attach to Tractor Hydraulic System

X9811
X9811-UN-23AUG88

CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high-pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene can result. Doctors unfamiliar with this type of injury must reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

Hydraulic hoses can fail due to physical damage, kinks, age, and exposure. Check hoses regularly. Replace damaged hoses.

IMPORTANT: All hydraulic couplers must be clear of debris, dust, and sand. Use protective caps on fluid openings until ready to make connection. Foreign material can damage the hydraulic system.

  1. NOTE: Tractor must have one set of selective control valve (SCV) receptacles. Tractor must have two sets of selective control valve receptacles if baler is equipped with hydraulic pickup lift.

    To help identify and properly connect hoses, Hose Identification Kits are available from your John Deere dealer.

    Tractor remote cylinder receptacles are labeled I through IV. Receptacles are identified from top to bottom.

    ISO hydraulic couplers are standard with the baler. If they do not fit the tractor, see your John Deere dealer.

    E62264
    E62264-UN-30MAR12

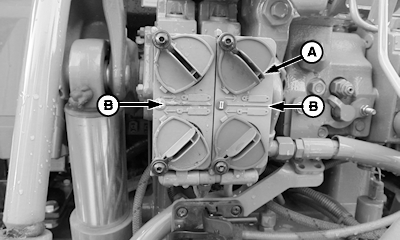

    A - Dust Covers

    B - Cylinder Symbols

    Clean off dust covers (A) and hose ends.


  2. Check to be sure symbols (B) on receptacle identification plate, indicating cylinder movement, match cylinder travel direction.

  3. CAUTION: On tractors with transport lock for selective control valve (SCV), such as John Deere 7000 Series tractors, push SCV lever into transport lock position before attaching implement, to prevent implement movement, and possible personal injury.

    To operate the gate; Insert hydraulic hoses into tractor receptacles (SCV I). When tractor selector control valve lever is moved rearward, the gate will open.

  4. When tractor selector control valve lever is moved forward, the gate will close.

  5. If equipped with optional hydraulic pickup lift, insert hydraulic hoses into next set of tractor receptacles (SCV II).

  6. Push hoses firmly into tractor receptacles.

PP98408,0000EC9-19-20130207
