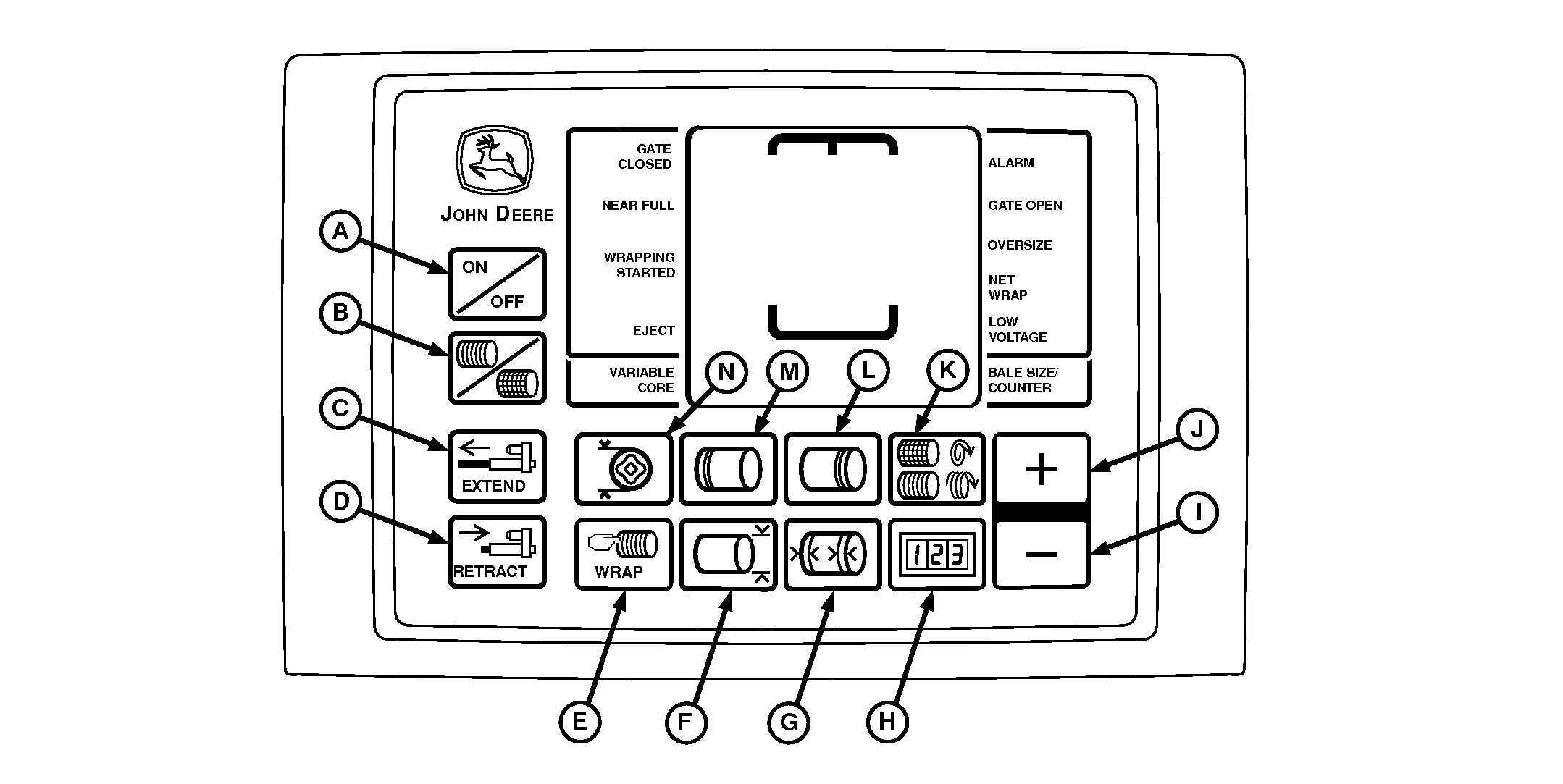

BaleTrak™ Pro Monitor-Controller Keys and Switches

E52458
E52458-UN-19JUN03

A - Monitor ON or OFF Switch

B - Selector Switch (Twine or Net1)

C - Actuator Extend—Manual (Twine Only2)

D - Actuator Retract—Manual (Twine Only2)

E - Wrap Cycle—Manual Start

F - Bale Diameter

G - End Wrap Distance (Twine Only)

H - Bale Counters

I - Minus Key

J - Plus Key

K - Twine Spacing or Number of Net Wraps

L - Number of Right-Hand End Wraps (Twine Only)

M - Number of Left-Hand End Wraps (Twine Only)

N - Variable Core Diameter1

1 Optional equipment.
2 Net actuator does not move when EXTEND or RETRACT keys are pressed in Net-mode. To move net actuator for servicing net unit, see TEST TWINE OR NET WRAP ACTUATOR CURRENT (CHANNEL 018), or see TEST TWINE OR NET WRAP ACTUATOR VOLTAGE (CHANNEL 019) in BaleTrak™ Pro Monitor-Controller section.
