Set Twine Spacing

E38438-UN-19JUN96

E52444-UN-02JUN08

A - 5 cm (2.0 in.) Twine Arm Spacing

B - 10 cm (4.0 in.) Twine Arm Spacing

C - 15 cm (6.0 in.) Twine Arm Spacing

D - 20 cm (8.0 in.) Twine Arm Spacing

E - Spring Pin

F - Twine Symbol

G - Twine Spacing Key

The monitor-controller maintains twine spacing for various bale diameters at rated PTO speed.

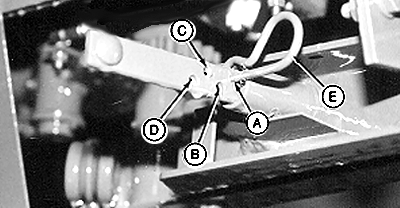

1. Set distance between the twine arms by installing spring pin (E) in the desired position:

   Hole ID	Twine Arm Spacing
   A	5 cm (2.0 in.)
   B	10 cm (4.0 in.)
   C	15 cm (6.0 in.)
   D	20 cm (8.0 in.)

2. When operating at rated PTO speed, the monitor-controller twine spacing setting must be the same as the mechanical twine arm spacing.

3. When operating less than rated PTO speed, set monitor-controller twine spacing setting less than mechanical twine arm spacing. This number will vary with different PTO speeds. Check twine spacing on bale and adjust monitor-controller setting to get desired twine spacing.

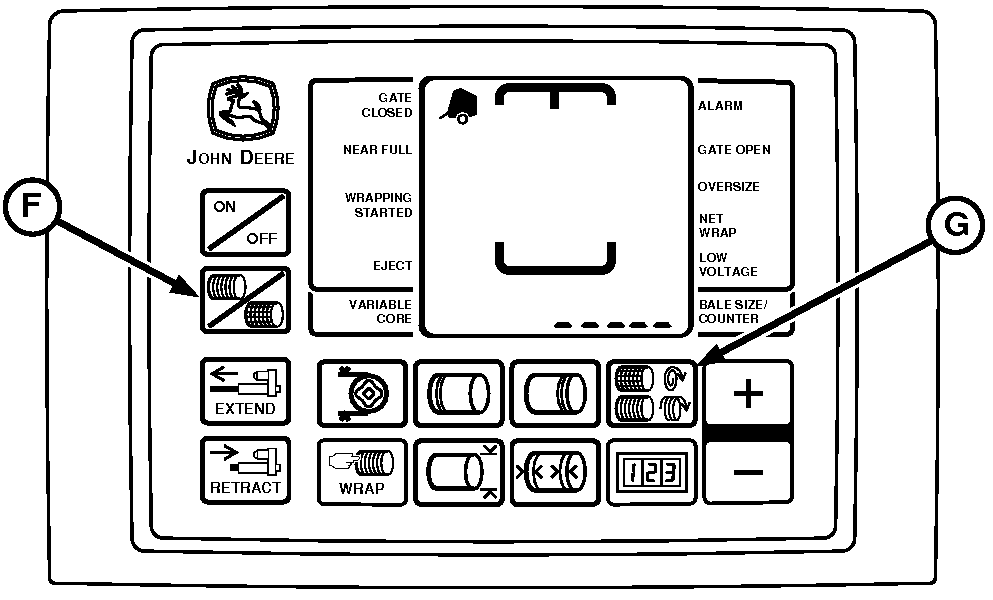

Set Monitor-Controller Twine Spacing:

1. Turn tractor key to ON position. Do not start tractor engine. Turn monitor-controller ON.

2. Press TWINE SPACING key (G). Press PLUS or MINUS keys until desired twine spacing, 2—26 cm (1.0—10.0 in.), appears in digital display.

   Use the following chart as a guideline. Monitor-controller settings can vary with crop conditions and between balers.

   Engine rpm	Mechanical Setting	Monitor-Controller Setting
   Rated Speed	10 cm (4.0 in.)	10 cm (4.0 in.)
   1800 rpm	10 cm (4.0 in.)	9 cm (3.5 in.)
   1500 rpm	10 cm (4.0 in.)	8 cm (3.0 in.)
   1300 rpm	10 cm (4.0 in.)	6 cm (2.5 in.)

3. NOTE: Slip clutch alert, if turned on, applies desired number of twine wraps regardless of PTO speed.

   Six seconds after last adjustment, setting will be entered into memory. Be sure monitor-controller twine spacing setting and mechanical twine arm spacing setting agree with each other.

4. Turn monitor-controller OFF. Turn tractor key to OFF position. Remove key.
