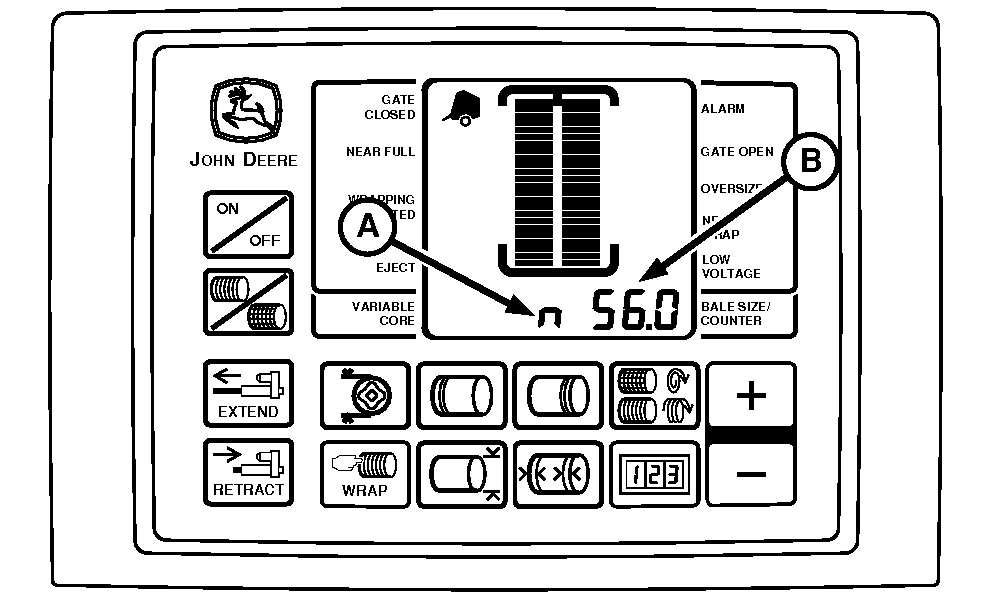

Net Switch Indicator

E53014-UN-07SEP06

A - n

B - Bale Size

In net mode while wrapping, when net switch is depressed, an n will be displayed in the left end of digital display. This indicates that the net is feeding. Indicator n will be left of bale size (example—56.0) in digital display.

If the n is displayed during normal baling, stop immediately and investigate.
