Activate Optional Variable Core Operation (Channel 208)

The optional variable core operation can be turned OFF and ON by accessing channel 208.

NOTE: The twine, net wrap, slip clutch alert, and optional variable core features will not operate correctly unless the model number displayed on monitor-controller matches baler model number.


Turning Feature On and Off:

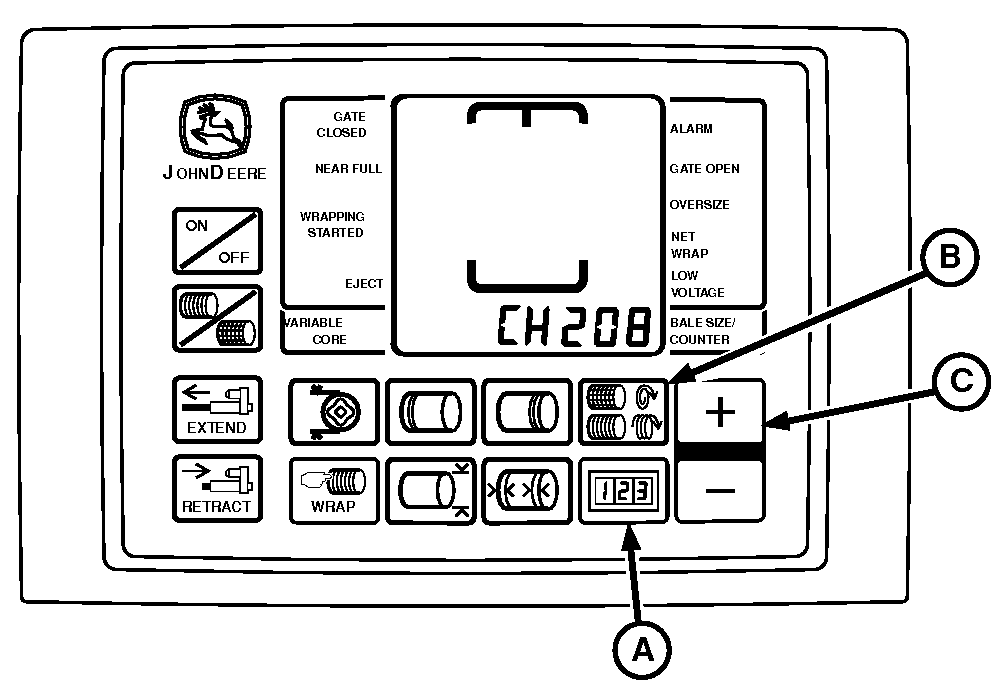

E57156
E57156-UN-14MAY09

A - COUNTER Key

B - NUMBER OF WRAPS Key

C - PLUS Key

  1. Turn tractor key to ON position. Do not start tractor.

  2. Press and hold both COUNTER key (A) and NUMBER OF WRAPS key (B) while turning monitor-controller to ON. CH201 must be displayed.

  3. Release both keys. Baler model is displayed.

  4. Press and hold COUNTER key (A) and press the PLUS key (C) until CH208 is displayed.

  5. Release COUNTER key (A).

  6. Press PLUS or MINUS key to change displayed value to 0 (variable core OFF) or 1 (variable core ON).

  7. Turn monitor-controller OFF to enter setting into memory.

  8. Turn monitor-controller ON to verify baler model number. Model number is displayed approximately 2 seconds. If displayed model number is incorrect, see BALER MODEL PROGRAM (CHANNEL 201) in this section.

  9. Turn tractor key to OFF position and remove key.

PP98408,0000F0F-19-20130207
