Adjust Pickup Height

IMPORTANT: Operating with pickup teeth contacting the ground can cause pickup damage.

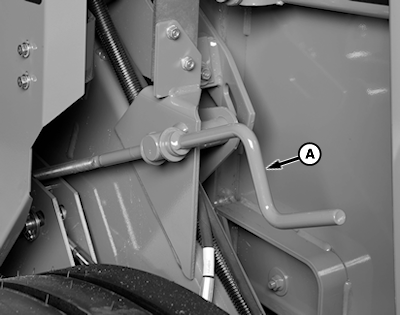

E69413-UN-12FEB13

A - Pickup Turn Crank

Adjust pickup teeth height to obtain a ground clearance of 25—50 mm (1—2 in.) for an initial setting. The final adjustment will be determined by field conditions.

To adjust pickup height:

• Turn crank (A) clockwise to raise the pickup
• Turn crank (A) counterclockwise to lower the pickup

If baler is equipped with a hydraulic pickup lift, the crank acts as the downstop controlling pickup operating height. This feature allows the pickup to return to the same operating height after raising and lowering hydraulically.

Always raise pickup to transport position when crossing ditches and moving from field to field.
