Adjust Gathering Wheel Height (If Equipped)

1. IMPORTANT: Gathering wheels must never be in heavy contact with the ground or damage to gathering wheels can occur.

   NOTE: Gathering wheels are not available for the MegaWide™ Plus pickup.

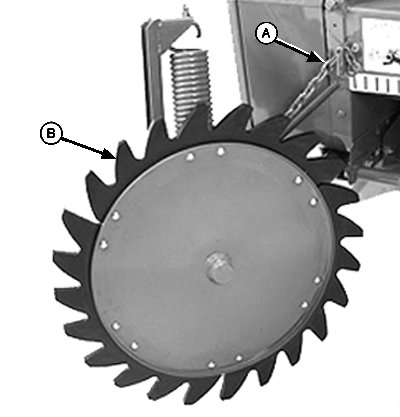

   E40021-UN-29MAY96

   A - Chain

   B - Gathering Wheel

   Remove chain (A) from chain anchor support and lower wheel (B) to ground.

---




2. Raise chain (A) one link and install back in chain anchor support. Wheel must be approximately 25 mm (1 in.) from the ground.

   If less than one chain link is needed for an adjustment, twist the chain and install back in chain anchor support.

NOTE: Final adjustment will be determined by field conditions.
