Adjustable Twine Guides

NOTE: For 459 and 459S baler, only a left-hand twine guide is used. 559 baler uses two twine guides.

E46440
E46440-UN-17MAR99

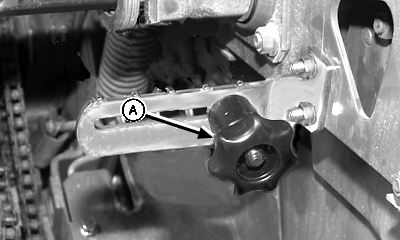

Right-Hand Side Shown

A - Twine Guide

Adjustable twine guides (A) are used to move the placement of the twine closer to the center of the bale. This is especially useful when baling slick grasses and straw.

Twine end wrap distance from end of bale can be adjusted 89—190 mm (3-1/2—7-1/2 in.) at 25 mm (1 in.) increments.
