Every 30 Hours


Pickup Lift Crank

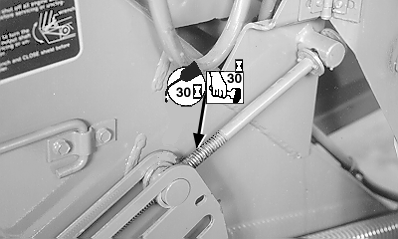

E47610
E47610-UN-07JAN00

A - Pickup Crank Thread

Lubricate crank threads with SAE 30 or heavier oil, or with John Deere EP Moly or an equivalent SAE multipurpose grease.


Twine Arms and Twine Actuator Rod

CAUTION: Twine arms can move unexpectedly. Keep hands out of twine arm path to avoid crushing. Turn off power BEFORE servicing or adjusting twine arms or twine cutter mechanism.

Stay out of the path of twine arms at all times when power to twine arm is ON.

E47598
E47598-UN-07JAN00

NOTE: Hydraulic cylinder pivot lubrication fitting is on machines equipped with hydraulic actuated twine wrap only.

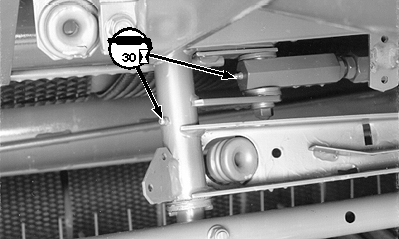

E39204
E39204-UN-16FEB96

459 and 459S

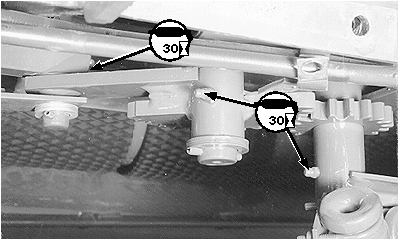

E39264
E39264-UN-19JUN96

559

Clean off foreign material or crop buildup from actuator rod.


COVER-EDGE™ Net Wrap Counterknife Arm Pivot (If Equipped)

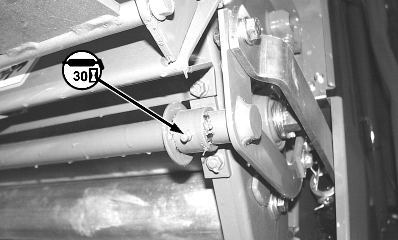

E48340
E48340-UN-12JUL00

Right-Hand Side Shown

IMPORTANT: Do not over lubricate counterknife arm pivot lubrication fittings. This will result in grease getting onto the rubber roll, causing wrappage.

Lubrication fittings are located on both left and right-hand sides.


Pickup Idler Arm

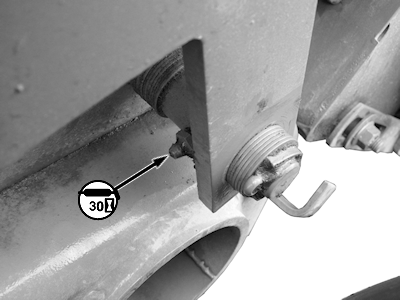

E61069
E61069-UN-16AUG12

Right-Hand Side

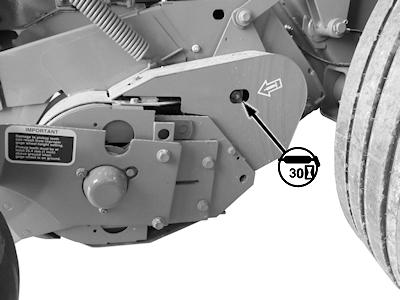

E61070
E61070-UN-16MAR12

Left-Hand Side


Pickup Lift Bellcrank Pivot

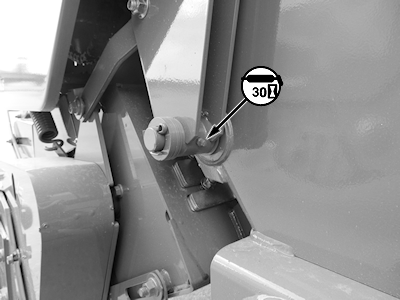

E61081
E61081-UN-16MAR12

Left-Hand Side

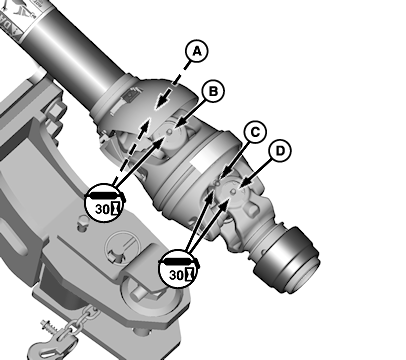

PTO Driveline

E62422
E62422-UN-09AUG12

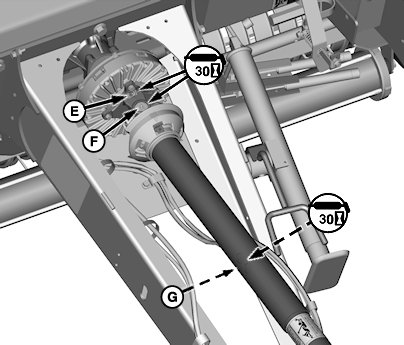

E62423
E62423-UN-09AUG12

A - 5 Pumps

B - 5 Pumps

C - 30 Pumps

D - 5 Pumps

E - 5 Pumps

F - 5 Pumps

G - 10 Pumps
