Adjust Upper Roll Drive Chain

To ensure the rear strand is the tight side of chain:

• Close gate and engage PTO a few seconds.
• Stop tractor engine and remove key.

Open left-hand side door.

When idler arm stop (A) is within 3 mm (1/8 in.) of contacting drive roll bracket bolt (B), remove links from chain (C).

To remove chain link:

1.
   E67455-UN-21AUG12


   E67456-UN-21AUG12

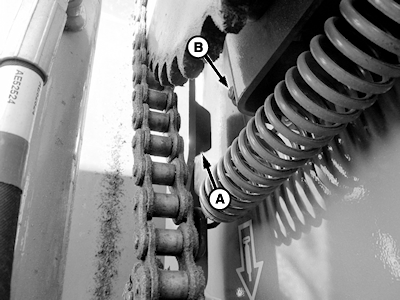

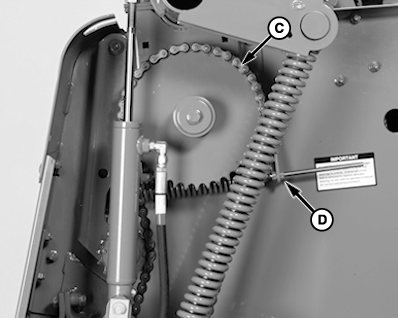

   A - Idler Arm Stop

   B - Drive Roll Bracket Bolt

   C - Chain

   D - Nut

   Loosen nut (D) to release chain tension.

---




2. Remove two links from chain (C).

3. Hold eyebolt from turning and tighten nut (D) against angle.

4. Check arm for contact. Repeat procedure as necessary.

Close left-hand side door.
