Remove Compressor Rack (Regular Pickup)

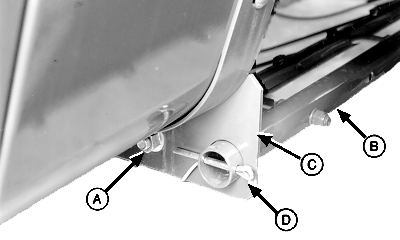

E40057-UN-17JUN96

A - Lock Nut

B - Compressor Rack

C - Right-Hand Bracket

D - Cotter Pin

1. Remove cap screw and lock nut (A). Remove cotter pin (D) from right-hand end of compressor rack tube.

2. Slide compressor rack (B) away from right-hand bracket (C).

3. Lower right-hand end and remove compressor rack from left-hand bracket.
