Install Compressor Rack (Regular Pickup)

E54718-UN-29JUN06

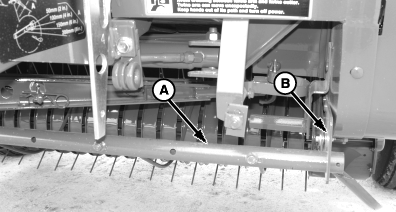

A - Compressor Rack

B - Left-Hand Bracket

1. Install compressor rack (A) in left-hand bracket (B).

2.
   E40061-UN-22JUN96

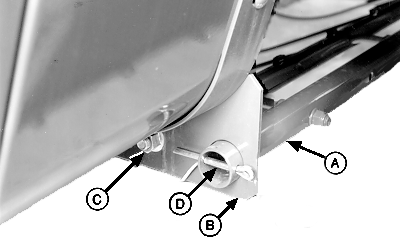

   A - Compressor Rack

   B - Bracket

   C - Lock Nut

   D - Cotter Pin

   Lift right-hand end and slide compressor rack (A) into bracket (B).

---




3. Install cap screw and lock nut (C). Install cotter pin (D) into right-hand end of compressor rack tube.

4. NOTE: Make sure that compressor rods do not interfere with twine arms. Adjust individual rods, as necessary, or adjust compressor rack for clearance.

   Adjust to desired operating height. Tighten lock nut (C). (See ADJUST COMPRESSOR RACK in this section.)
