Remove Compressor Rack (MegaWide™ Plus)

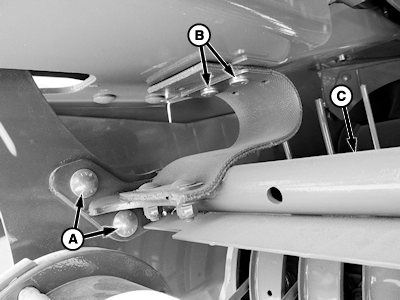

E66832
E66832-UN-09AUG12

A - Round-Head Bolt and Nut (2 on each side)

B - Round-Head Bolt and Nut (2 on each side)

C - Compressor Tube

  1. Remove two round-head bolts (B) from rubber strap. Do on opposite side of baler.

  2. Remove two round-head bolts (A) from bracket. Do on opposite side of baler.

  3. Carefully lift and remove compressor tube (C) and rods.

PP98408,0000F66-19-20130207
