Adjust Compressor Rods (MegaWide™ Plus)

E66833
E66833-UN-19JUL12

E54549
E54549-UN-28JUN06

A - Round-Head Bolt and Nut (2 on each side)

B - Compressor Tube

C - Dimension, 25—30 mm

D - Compressor Rods

E - Stripper

Adjust compressor rods whenever rods are replaced, roller baffle height is adjusted, or if compressor rack has been removed.

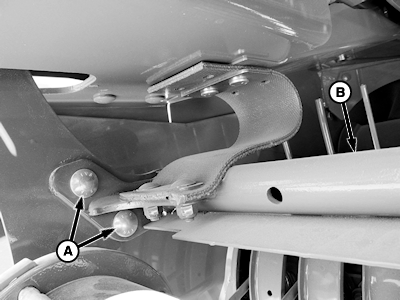

  1. If rods are replaced, loosen two round-head bolts and nuts (A) on both sides of compressor rack.

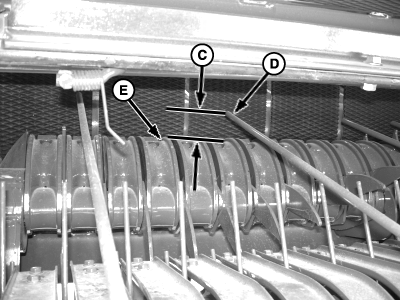

  2. Adjust compressor tube (B) until dimension (C) is 25—30 mm between compressor rods (D) and rotor stripper (E). Tighten round-head bolts (A) and nuts.

  3. Cycle twine arm and check for interference.
