Remove and Install Roller Baffle

1.

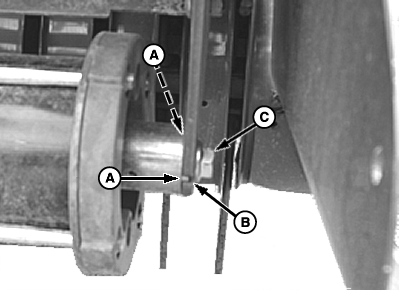

   E54716-UN-27JUN06

   A - Locating Pins (2 one each side)

   B - Slot (Front and Back of Bracket)

   C - Flange-Head Bolt

   Remove flange-head bolt (C) from each end of roller.

---




2. NOTE: Roller is heavy. Use care when removing locating pins from bracket. Support first end of roller before removing locating pins from opposite side.

   Carefully, remove locating pins (A) from slots (B). Lower end of roller to a support while removing locating pins from opposite side.

3. Remove locating pins from other side and carefully remove roller baffle.

Install Roller Baffle

1. NOTE: Support roller so each end will be approximately the same height.

   Install roller baffle locating pins (A) into slots (B) on support bracket. Repeat on opposite side.

2. Fasten each end of roller baffle with flange-head bolt (C).

   If an adjustment is needed, See ADJUST ROLLER BAFFLE HEIGHT in this section.
