Adjust Roller Baffle Float Tension

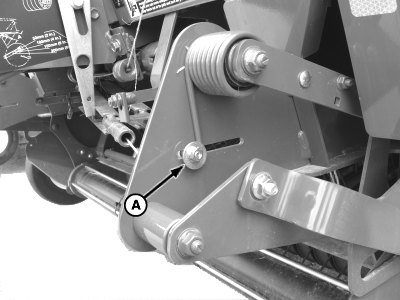

E54714-UN-28JUN06

A - Nut

NOTE: Float tension spring must be adjusted evenly on both sides of roller baffle.

To move tension spring, pry between washer and front of slot to move spring tine to rear.

• To increase float, loosen nut (A) and move spring tine to the rear.
• To decrease float, loosen nut (A) and let spring tine move forward.
• Repeat on opposite side.
