Twine Arm Timing (559 and 559S)
CAUTION: Twine arms can move unexpectedly. Keep hands out of
twine arm path to avoid crushing. turn off power BEFORE servicing
or adjusting twine arms or twine cutter mechanism.
Stay out of the path of twine arms at all times when power to twine arms is ON.
E47598-UN-07JAN00
E39695-UN-31JAN96

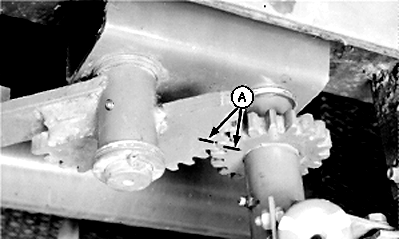

A - Timing Marks
When replacing or servicing twine arms or drive gear, make sure timing marks (A) are lined up as shown.|
