Adjust Lower Feed Roll Scraper

1. CAUTION:


   TS698-UN-21SEP89

   To avoid injury or death caused by unexpected lowering of the gate, engage gate lock before working on, around, or under gate in raised position.

   Open gate fully, then lower to a convenient height.

---




2. Shut off tractor engine and remove key.

3. Lock the gate.

4. Verify that tension arm is fully raised and against its stops.

5.
   E21748-UN-13SEP88

   Non-Net Wrap Balers

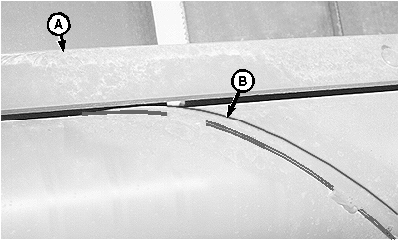

   E40236-UN-17JUL96

   459S and Net Wrap Balers

   A - Scraper

   B - Gate Roll

   Loosen mounting lock nuts on scraper (A).

---




6. Using feeler gauge, adjust scraper (A) until roll-to-scraper clearance is within specifications at tightest points. Tighten lock nuts.

   Item	Measurement	Specification
   Lower Front Gate Roll-to-Scraper	Clearance	2.5—5.5 mm (3/32—7/32 in.)

7. Rotate roll to make sure that scraper does not hit roll at any point as roll is rotated.

8. Unlock and lower gate.
