Check Belt Tracking

IMPORTANT: If belts are new and have not been used, add baby powder to simulate crop dust or the belts cannot track properly on the rolls.

Use only baby powder made with talcum. Do not use powder with corn starch. Corn starch will absorb moisture and cling to rolls.

It is best to powder belts on a sunny, dry day with baler in a building or under shelter. If baler is outside, be sure that belts and rolls are dry. Do not powder on damp (early morning dew) belts.

Use baby powder that is made with talcum. A large bottle, 15 oz. plus, can be necessary.

1. CAUTION:


   TS698-UN-21SEP89

   When positioning the gate to provide access for service, always make sure tension arm (A) is fully raised and against tension arm stops (B). This prevents gate from lowering unexpectedly.

   ALWAYS raise the gate fully and lower it to the desired opening height before engaging gate lock. Crop material can hold the tension arm at a lower position and material can be redistributed during servicing. This could cause tension arm (A) to swing up and suddenly lower the gate, even if the gate lock is engaged.

   Failure to verify that tension arm (A) is positioned against stops (B) can result in serious injury or death.

   Close the gate any time baler must be left unattended.

   CAUTION: To avoid serious injury from entanglement, ensure bystanders stand clear when operating baler. DO NOT apply powder with baler running.


   E55649-UN-07APR08


   E55650-UN-07APR08

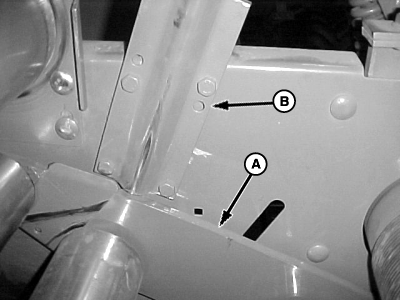

   A - Tension Arm

   B - Tension Arm Stop

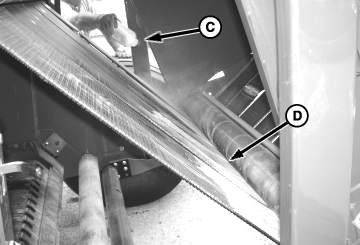

   C - Talcum Powder

   D - Powder on Belts

   Position gate as follows:

   1. With tractor attached to baler, open gate fully, lower gate until belts are slack and tension arm (A) remains against tension arm stop (B). Lock gate, shut off tractor engine, and remove key.

   2. Stand outside of baler tire, and liberally sprinkle powder (C) on all belts (D). Unlock gate, start tractor, raise gate fully, engage PTO to rotate belts approximately 2.4 m (8 ft.) and disengage PTO. Lock gate, shut off tractor engine, and remove key.

   3. Repeat step b until, complete length of belts are thinly coated.

---




2. CAUTION: When removing powder from rolls (E), lock gate, shut off tractor engine and remove key.


   E55228-UN-01JUN07

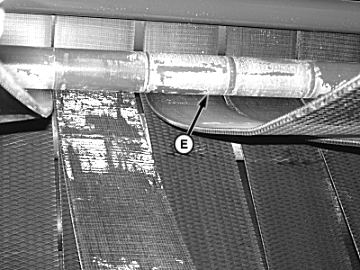

   E - Rolls

   If belts are slightly damp, or humidity is high, powder can stick to rolls (E). If rolls are coated, remove powder from rolls, and reapply powder to belts.

---




3. Remove any wrappage or buildup on rolls.

4. Determine if gate closes evenly using the following instructions:

   1. Open gate using tractor hydraulics.

   2. Stop tractor engine and remove key.

   3. Move tractor SCV lever to float position to allow gate to close freely.

   4. If both sides of gate contact main frame at the bottom, proceed to Step 5.

   5. If one side makes contact but the other side has a gap between gate and frame, see your John Deere dealer for proper procedure to straighten the gate.

5. Park baler on a level surface. With baler empty and gate closed, engage PTO and run at slow speed. Check the tracking of the belts by observing belt positions relative to belt guides.

6. Shut off tractor engine and remove key. Adjust rolls, if necessary. (See ADJUST BELT TRACKING in this section.)
