Adjust Belt Tracking

1. IMPORTANT: Check belt tracking before making any belt tracking adjustments.

   If belts are new and have not been used, add baby powder to simulate crop dust and allow belts to track freely.

   NOTE: Check belt tracking with PTO engaged and tractor at lowest rpm. Hold tractor hydraulic lever in gate closing position to apply tension to belts while checking.

   NOTE: Light contact with belt guides is acceptable, but belts must not curl against guide straps.

   If adjustment is needed, slack belts by doing the following procedure:

   1. Raise gate fully so tension arm is against stop.

   2. Lower gate slowly until belts are slack.

   3. Lock the gate.

   4. Shut off tractor and remove key.

2.
   E54427-UN-17OCT05

   Without COVER-EDGE™ Net Wrap

   A - Cap Screw

   Loosen cap screw (A) and adjust number 8 roll in slot with small movements. Let baler run at least 30—40 seconds to observe tracking between adjustments.

---




3. NOTE: Check clearance between washer (B) and guide (C) before adjusting belt tracking. (See CHECK AND ADJUST LOWER NET WRAP GUIDE in this section.)

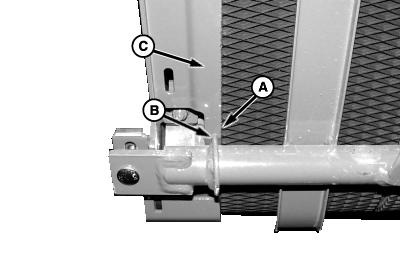

   E55290-UN-22JUN07

   A - Outside Belt

   B - Guide Washer

   C - Guide

   Check tracking of outside belts (A) relative to guide washers (B). There must be clearance between outer edge of belt and guide washer on both sides of baler. Some occasional contact between belt and washer is allowable, but continuous contact is not allowable.

---




4.

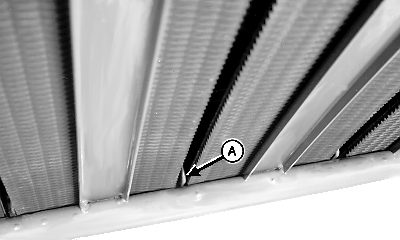

   E40605-UN-26JUN96

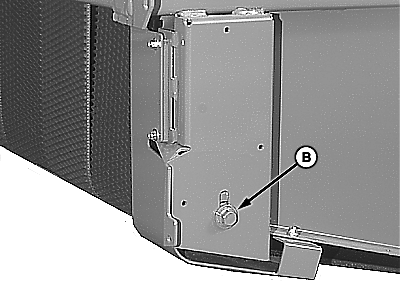

   E48783-UN-10AUG00

   Without COVER-EDGE™ Net Wrap


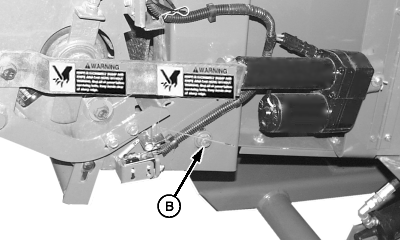

   E48252-UN-08JAN02

   With COVER-EDGE™ Net Wrap

   A - Lower Belt Guide

   B - Cap Screw

   If belts are not centered at lower belt guide (A), make the following adjustments:
   • If belts track to the left:



   1. Loosen cap screw (B) at right side.

   2. Raise RIGHT end of lower rear gate roll.

   3. Tighten cap screw (B).

   • If belts track to the right:



   1. Loosen cap screw (B) at right side.

   2. Lower RIGHT end of lower rear gate roll.

   3. Tighten cap screw (B).

      NOTE: After adjustment, be sure neither belt contacts guide washers continuously as described previously.

      Light contact with belt guides is acceptable, but belts must not curl against guide straps.

---




5. Tighten cap screw (B) to specification.

   Item	Measurement	Specification
   Cap Screw	Torque	140 N·m (105 lb.-ft.)

6.

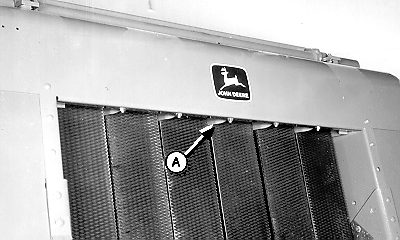

   E39723-UN-09FEB96

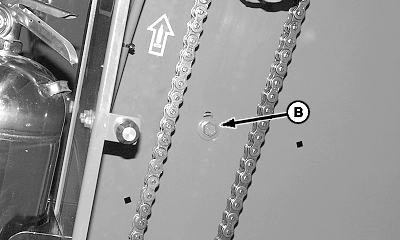

   E54025-UN-05JAN05

   Left-hand Side

   A - Front Belt Guide

   B - Cap Screw

   If belts are not centered at the upper front belt guide (A), make the following adjustments:
   • If belts track to the right:



   1. Loosen cap screw at right-hand side.

   2. Raise RIGHT end of front idler roll.

   3. Tighten cap screw.

   OR

   1. Loosen cap screw (B) at left-hand side.

   2. Lower LEFT end of front idler roll.

   3. Tighten cap screw (B).

   • If belts track to the left:



   1. Loosen cap screw (B) at left-hand side.

   2. Raise LEFT end of front idler roll.

   3. Tighten cap screw.

   OR

   1. Loosen cap screw at right-hand side.

   2. Lower RIGHT end of front idler roll.

   3. Tighten cap screw.

---




7. Tighten cap screw on both sides of roll to specification.

   Item	Measurement	Specification
   Mounting Cap Screw	Torque	140 N·m (105 lb.-ft.)

8.

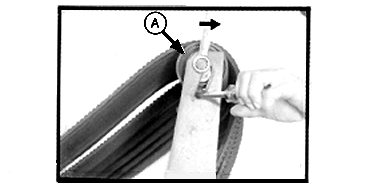

   E39725-UN-09FEB96

   A - Take-Up Roll

   If belts are not centered at the upper rear guide, make the following adjustment:
   • If belts track to the right, move RIGHT end of take-up roll (A) (in direction shown) in short leg of L shaped slot.
   • If belts track to the left, move LEFT end of take-up roll (A) (in direction shown) in short leg of L shaped slot.
   • Tighten cap screw to specification.

     Item	Measurement	Specification
     Mounting Cap Screw	Torque	140 N·m (105 lb.-ft.)




---




9.

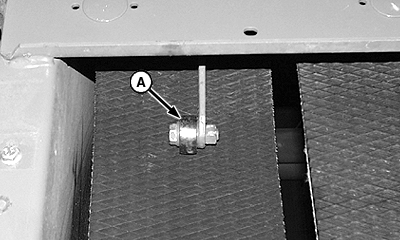

   E47618-UN-07JAN00

   Left-Hand Side Shown

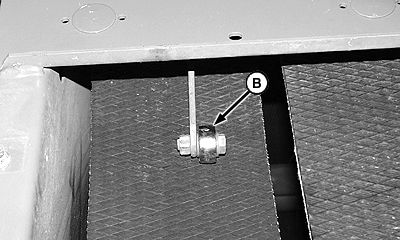

   E47619-UN-07JAN00

   Left-Hand Side Shown

   A - Roller (Normal Outside Position)

   B - Roller (Inside Position)

   If outside belts track to the outside, rubbing the lower belt guide or side of baler, adjust as follows:
   • Move roller from the normal outside position (A) on the sender arm to inside position (B). The belt will track towards the middle of the baler.



---
